Product Overview

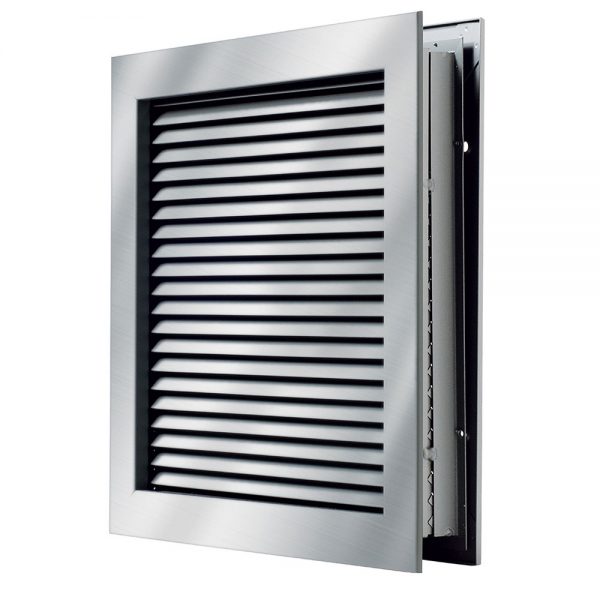

National Guard Products (NGP) L-700-RX-316SS No Vision Door Louver for 1-3/4″ Thick Doors
Louvered doors help ventilate rooms when closed while still providing privacy and security.

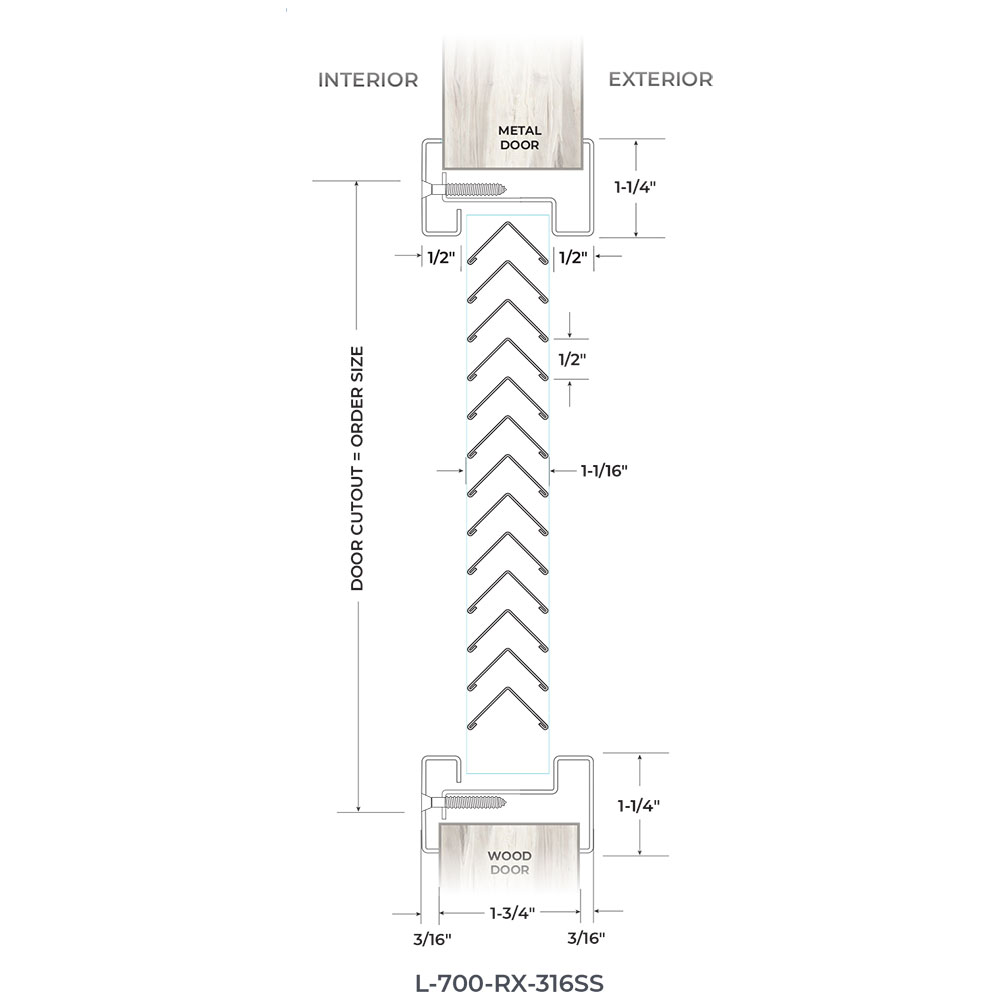

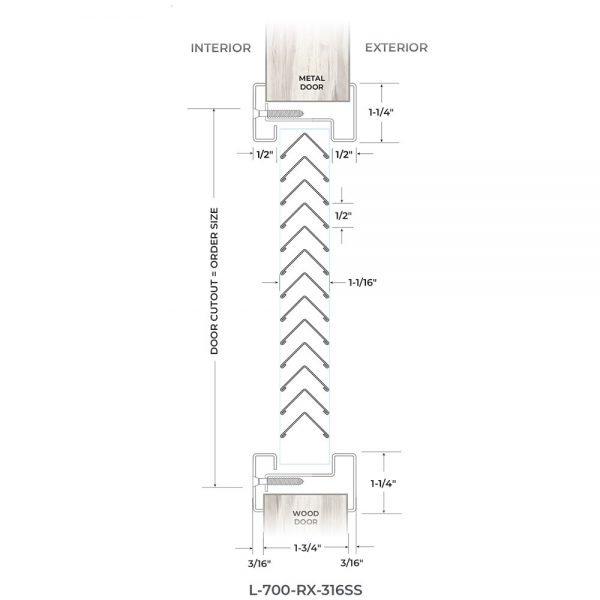

L-700-RX-316SS Frame: Self-attaching frame with 1-1/4″ trim, mitered, and welded corners.
- Order size is equal to door cutout size (width by height)
- For 1-3/4″ Thick Doors
- 18 Ga. Type 316 Stainless Steel Frame
- Mitered and Welded Corners
- Inverted “V” Design
- Blades 24 Ga. Hemmed Edges
- Type 316 Stainless Steel
- Countersunk Mounting Screw-Holes
- #8 X 1″ Phillips Head SMS
- Free Area 55%
- #4 Satin Finish
- No Custom Sizes Available
- Designed for Use on Doors Manufactured Within Door Industry Tolerance of +/- 1/16″
| Brand | |
|---|---|
| Finish | Stainless Steel |
| Size | 12" x 12", 18" x 12", 18" x 18", 24" x 12", 24" x 18", 24" x 24" |
| Material | Stainless Steel |
| Door Thickness | 1-3/4" |
| Free Flow Area | 55% Free Area |
| Fasteners | #8 x 3/4" Flathead Phillips SMS – Included |
| Fire Rating | None |
| Warranty | 5 Year |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
