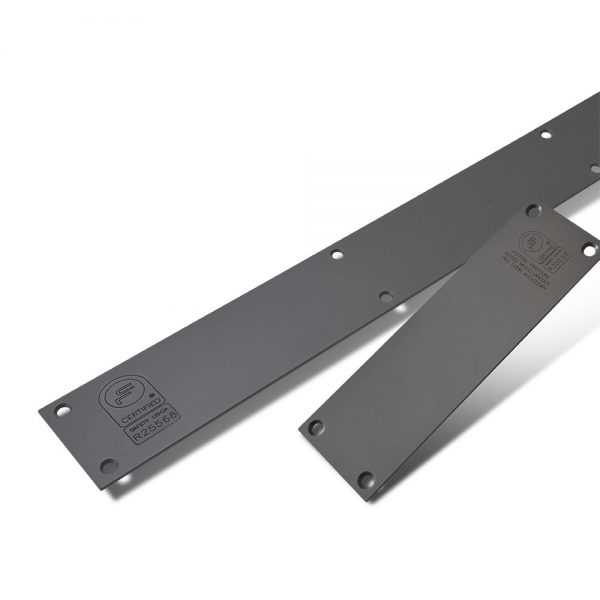

NGP (National Guard) FR180 Frame Repair Kit for Steel Doors and Frames

NGP FP180 Frame Repair Kit for Steel Doors and Frames, 5 Pack

Application Certified for Steel Fire Doors and Frames Rated up to 180 Minutes.

• Application Certified for Steel Fire Doors and Frames Rated up to 3 Hours
• Maximum Area of Cutout in Door or Frame Concealed Plate is: 5.5 Sq. In. up to 12″ Cover Plate, 12.0 Sq. In. Between 24″ and 48″ Cover Plate. No Single Cutout Larger Than 5.5 Sq. In.
• Allowed to be Used on Steel Frames up to 14 Ga. Thickness
• Allowed to be Used on Steel Doors up to 16 Ga. Thickness
• Cover Plate Maximum Size 48″
• Allowed to be Used With Listed Surface Mounted Hardware and Listed Door Position Switches (up to 1-1/8″ Diameter)
• Adhesive Tape May be Used in Addition to Mechanical Fasteners
• Product consists of: Metal Plate, 16 Ga. Steel, Embossed with UL Mark
• Hardware Pack: 6-32 x .500 FU-P-BO-ST. Drill Bit #36 x 2-1/2″
• Sizes 6″ and 48″ (Can be Cut Down in Field)
• Finish: Primer Gray, Powder Coat
