Product Overview

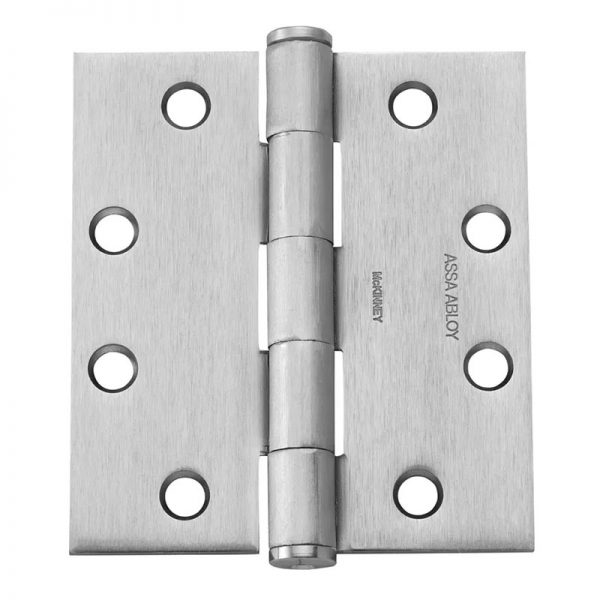

McKinney TCA2714 4-1/2" x 4-1/2" Full Mortise Steel Five Knuckle Standard Weight Concealed Bearing Hinge, Square Corner
The TCA2714 (steel) concealed, anti-friction bearing five knuckle standard weight full mortise hinges provide long-lasting wear and consistent hinge barrel design, recommended for standard weight, medium frequency, or doors with closing devices.
Features
- For common flush door/frame/wall applications
- Optional Non-Removable Pin (NRP)
Benefits
- Concealed bearings provide long-lasting wear and consistency of hinge barrel design
- Optional Non-Removable Pin (NRP) ensures hinge is held in place and can't be removed when door is closed
- Non-Removable Pin (NRP) option ensures hinge is held in place and can't be removed when door is closed
| Brand | |
|---|---|
| Finishes |
652 Satin Chrome, 633 Satin Brass, 640 Oil Rubbed Bronze, 632 Bright Brass, 639 Satin Bronze |
| Hinge Type |
Full Mortise |
| Size |
4.5" x 4.5" |
| Knuckles |
Five |
| Bearings |
Concealed Bearing |
| Gauge |
0 .134 |
| Usage |
Medium Duty |
| ANSI/BHMA Standard |
Meets ANSI/BHMA A156 .1 |
| Fire-Rating |
Certified to meet UL standards (3hr) |
| Fasteners |
Packed with wood and metal screws |
