Product Overview

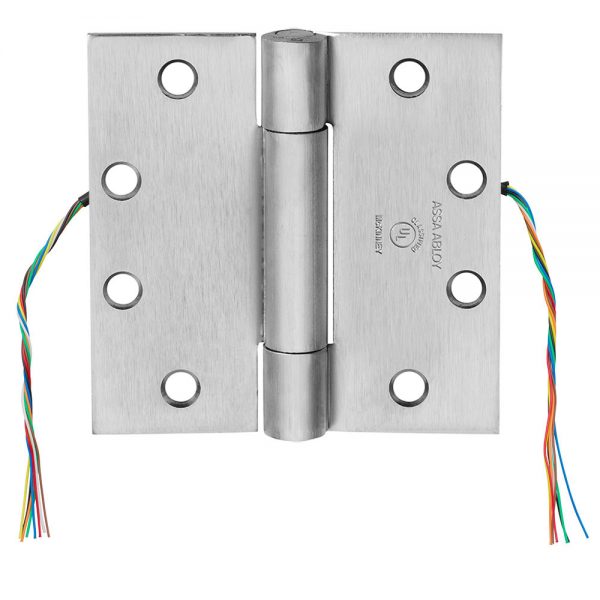

McKinney TA786 CC8 Concealed Circuit Full Mortise Electrified Hinge, Three Knuckle, Concealed Bearing
Concealed Circuit electric hinges allow a constant flow of current from the power source through the hinge to electrified door hardware. No external wires can be seen, eliminating disruption of power due to tampering or disconnection, and improving the aesthetics of the opening.
Features
- Allows operation of devices requiring power such as electric locks, electric strikes, and electric latch retraction exit devices
- Four amp continuous @ 24 volts AC or DC per circuit 16.0 Amps intermittent duty (pulse) for 300 milliseconds
- CC option has 28 gauge wire
- Hinges are supplied with 8″ (305) leads as standard. Extra lengths are available at additional cost
Benefits
- Wires are contained within the hinge making them invisible and tamperproof
- Secures building and doorways
- Easily and safely powers locking hardware and access control
| Brand | |
|---|---|
| Finishes |
652 Satin Chrome |
| Hinge Type |
Full Mortise |
| Size |
4.5" x 4.5", 5" x 4.5", 4.5" x 4" |
| Knuckles |
Three |
| Bearings |
Concealed Bearing |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Meets ANSI/BHMA A156 .1 |
| Fire-Rating |
UL Listed |
