McKinney TA714 CC8 Concealed Circuit Full Mortise Electrified Hinge, 8 Wire

Usually Ships: 3-5 Business Days
  • Allows electrical currents to pass from jamb through the hinge into door
  • Easily and safely powers locking hardware and access control
  • Three-knuckle, template hole pattern

Available Options:

Product Overview

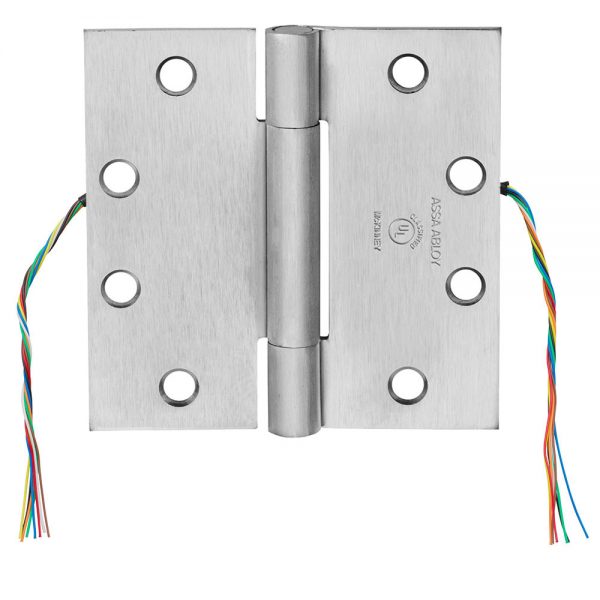

McKinney TA714 CC8  Concealed Circuit Full Mortise Electrified Hinge, Three Knuckle, Concealed Bearing

Concealed Circuit electric hinges allow a constant flow of current from the power source through the hinge to electrified door hardware. No external wires can be seen, eliminating disruption of power due to tampering or disconnection, and improving the aesthetics of the opening.

Features

  • Allows operation of devices requiring power such as electric locks, electric strikes, and electric latch retraction exit devices
  • Four amp continuous @ 24 volts AC or DC per circuit 16.0 Amps intermittent duty (pulse) for 300 milliseconds
  • CC option has 28 gauge wire
  • Hinges are supplied with 8″ (305) leads as standard. Extra lengths are available at additional cost

Benefits

  • Wires are contained within the hinge making them invisible and tamperproof
  • Secures building and doorways
  • Easily and safely powers locking hardware and access control
Brand

Finishes

646 Satin Nickel, 652 Satin Chrome
Hinge Type

Full Mortise
Size

4.5" x 4", 4.5" x 4.5"
Knuckles

Three
Bearings

Concealed Bearing
Usage

Medium Duty
ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1
Fire Rating

UL Listed
