McKinney TA714 - 4.5" x 4.5" Concealed Bearing Hinge

$12.46
Usually Ships:  1-2 Business Days
  • Meets ANSI/BHMA A156.1
  • .134 standard weight
  • Three-knuckle, template hole pattern

Available Options:

Clear

Product Overview

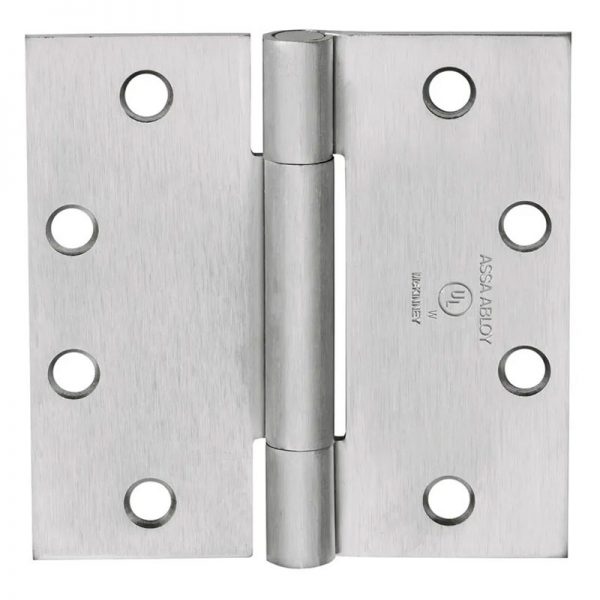

McKinney TA714 4-1/2 x 4-1/2 Full Mortise Standard Weight 3 Knuckle Hinge, Concealed Bearing, Square Corner

The TA714 (steel) is a standard weight three knuckle hinge, recommended for standard weight, medium frequency doors, or doors with closing devices.

  • Concealed bearing hinge
  • Anti-friction type bearings at both joints
  • Dependable and long-lasting
  • Recommended for standard weight, medium frequency doors, or doors with closing devices
  • Packed with wood and metal screws
  • Suites with Rockwood pulls, coat hooks, and door stops
  • Pairs well with Corbin Russwin and Sargent decorative levers
  • UL listed, NFPA 80 Compliant
Brand

Finishes

652 Satin Chrome, 633 Satin Brass, 640 Oil Rubbed Bronze, 651 Bright Chrome, 646 Satin Nickel, 632 Bright Brass, USP Prime Coat, 639 Satin Bronze, BSP Black Suede Powder Coat, 10BE Satin Bronze Powder Coat

Size

4.5" x 4.5"

Hinge Type

Full Mortise

Knuckles

Three

Bearings

Concealed Bearing

Gauge

0 .134

Usage

Medium Duty

ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1

Fire-Rating

Certified to meet UL standards (3hr)

Fasteners

Packed with wood and metal screws
