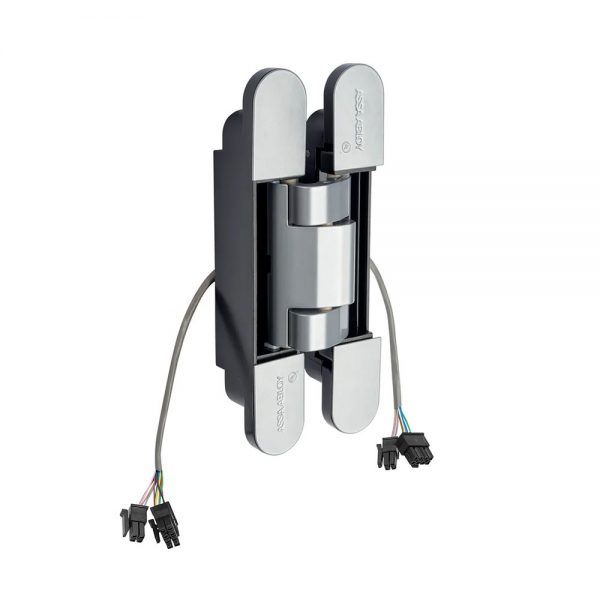

McKinney MK150ME ElectroLynx “QC” Quick Connect 3D Adjustable Concealed Invisible Electrified Hinge

McKinney MK150ME ElectroLynx Quick Connect 3D Adjustable Concealed Invisible Electrified Hinge

The MK150 and MK150ME are concealed hinges for wood or hollow metal doors with a 1-1/2″ minimum thickness, are non-handed and include magnetic covers. MK150ME is corrosion-resistant. MK150ME is electrified, allowing for a constant flow of current from a power source through the hinge to electrified door hardware, including locks, strikes, and exit devices.

Features

• For wood or hollow metal doors that are a minimum 1-1/2″ thick
• 200mm (7.87″) hinge length, 32mm (1.26″) hinge width
• Magnetic covers included
• 3-dimensional adjustability, 180° opening angle
• Base Materials: Hinge body – zinc alloy, Hinge arms – aluminum, Hinge covers – steel
• Sits flush inside the opening
• Can hold doors up to 457 lbs.
• UL listed for hollow metal, steel covered composite and wood core fire doors rated 20 minutes
• ANSI/BHMA A156.1 Double Weight Testing Accomplished
• Cataphoresis coating provides a durable and corrosion-resistant surface

Benefits

• Greater hinge capacity than all McKinney concealed hinge models except MK130+8 and MK200
• Prevents tampering, increases security
• Keeps door clean and minimal
• Easy installation and door alteration
• Magnetic covers conceal screws for a clean aesthetic
• No visible exposure on the outside of the opening
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door (MK150ME)
