Product Overview

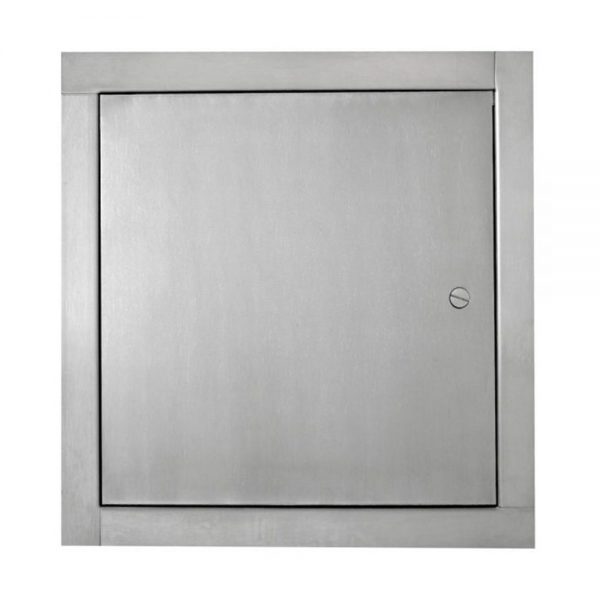

JL Industries TMS Series General Purpose Flush Access Panel with Exposed Flange, Concealed Hinge, Satin Stainless Steel
Model TMS is an all purpose stainless steel access door affords fast and convenient access for inspection or service to vital components of plumbing, heating, air conditioning and/or electrical systems. Use the TMS for hospital and restaurant applications. The 1″ frame flange adds rigidity and conceals the rough wall openings. The concealed hinged door is mounted to the frame and swings open for ease\ in servicing and results in a door always closing square in place.
- Frame: 8 gauge, stainless steel with 1″ wall flange. 1-5/8” depth.
- Door: 6 gauge, stainless steel mounted with 90° continuous, concealed stainless steel hinge.
- Finish: 304 stainless, #4 Satin finish

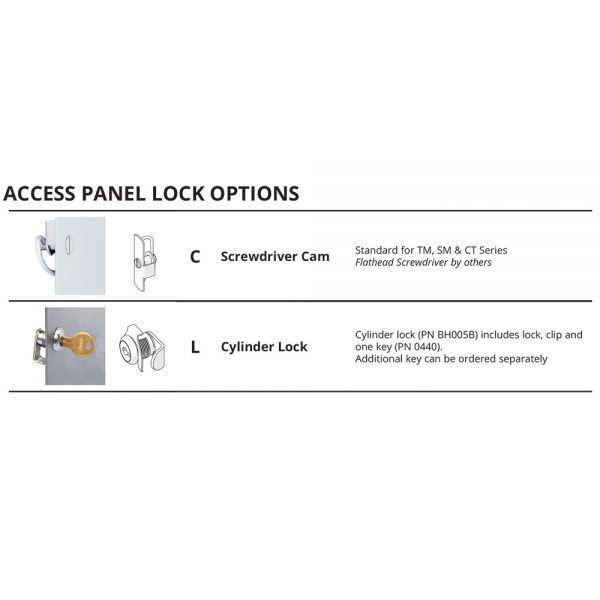

- Latch: (C) Flush screwdriver-operated cam standard or (L) Cylinder lock with key
- Flange: Standard exposed (TM)
Models: TMS-0808C, TMS-1010C, TMS-1212C, TMS-1212L, TMS-1616C, TMS-1818C, TMS-2424C, TMS-2424L
| Brand | |
|---|---|
| Size | 8" x 8", 10" x 10", 12" x 12", 16" x 16", 18" x 18", 24" x 24" |
| Latch | C – Screwdriver Cam, L – Cylinder Lock |
| Flange | Standard Exposed |
| Finish | Stainless Steel |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
