HES 9600 Surface Mounted Electric Strike For Rim Exit Devices

Usually Ships: 2-3 Business Days
  • For use with rim exit devices
  • Installs on metal or wood frames
  • Dual Voltage 12/24 VDC

Available Options:

Clear

The stylish surface mounted solution – Works with rim exit devices up to a 3/4″ throw latchbolt

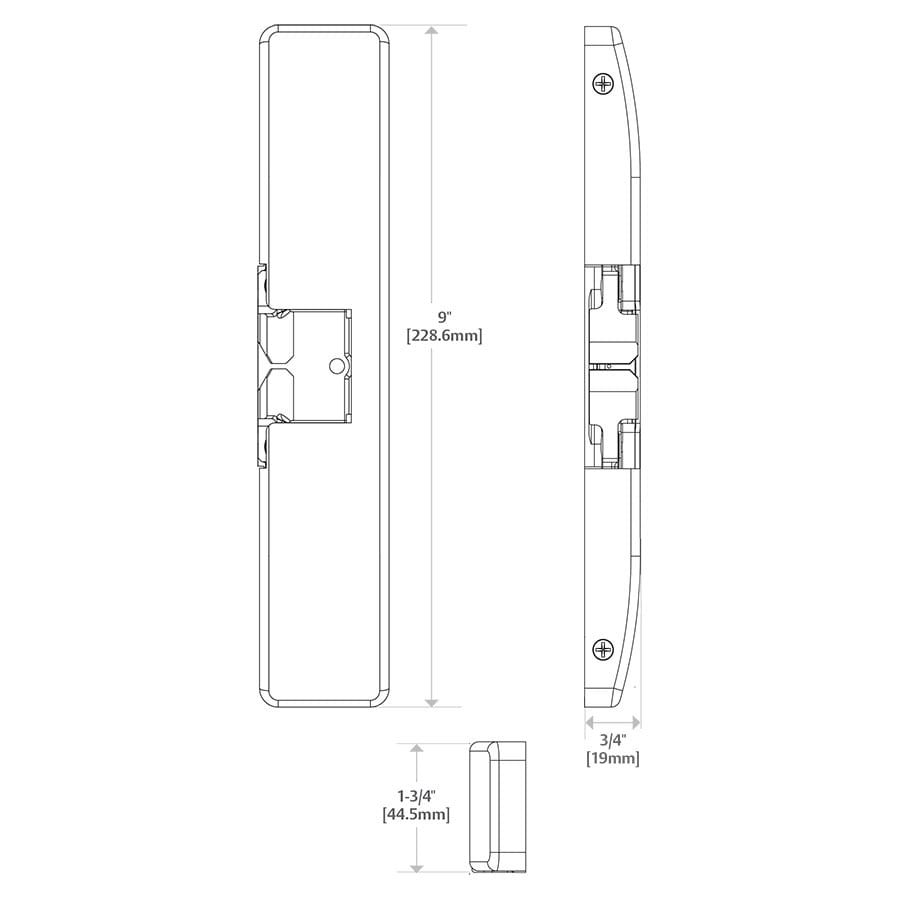

The 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4″ throw latch. All components are completely encased within its 3/4″ thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail-safe operation, and for 12 or 24VDC.

  • Endurance 1,000,000 cycles
  • Field selectable fail safe/fail secure
  • Dual voltage 12 or 24 VDC
  • Accommodates up to 3/4″ Pullman latch
  • Non-handed

Optional Features

  • LBM – Latchbolt monitor (detects when latchbolt is in a locked state)
  • LBSM – Latchbolt strike monitor (detects latchbolt and strike are in a locked state)

Certifications / Listings

  • ANSI 250.13-2003 Severe Windstorm listed
  • Florida Building Code Approved (FL#14307)
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 listed
  • UL 305 listed
  • ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373)
  • RoHS compliant

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Bronze Toned, 613e Dark Oxidized Satin Bronze equivalent, 629 Bright Stainless Steel, 630 Satin Stainless Steel, BSP Black Suede Powder Coat

Usage

Heavy Duty

ANSI Grade

ANSI/BHMA A156.31, Grade 1

Fire Rating

Non-Fire-Rated

Voltage

Dual voltage 12 or 24 VDC

HES 9000 Family Installation Instructions
