HES 9500 Fire-Rated Surface Mounted Electric Strike For Rim Exit Devices

Usually Ships: 1-2 Days
  • For use with rim exit devices
  • UL 10C fire-rated, 3 hour (fail secure only)
  • Can be installed on metal or wood frames

Available Options:

  • Black
  • Dark Bronze
  • Satin Brass
  • Satin Bronze
  • Stainless Steel
Clear

The durable, fire-rated surface mounted solution – works with rim exit devices up to 3/4″ throw latchbolt

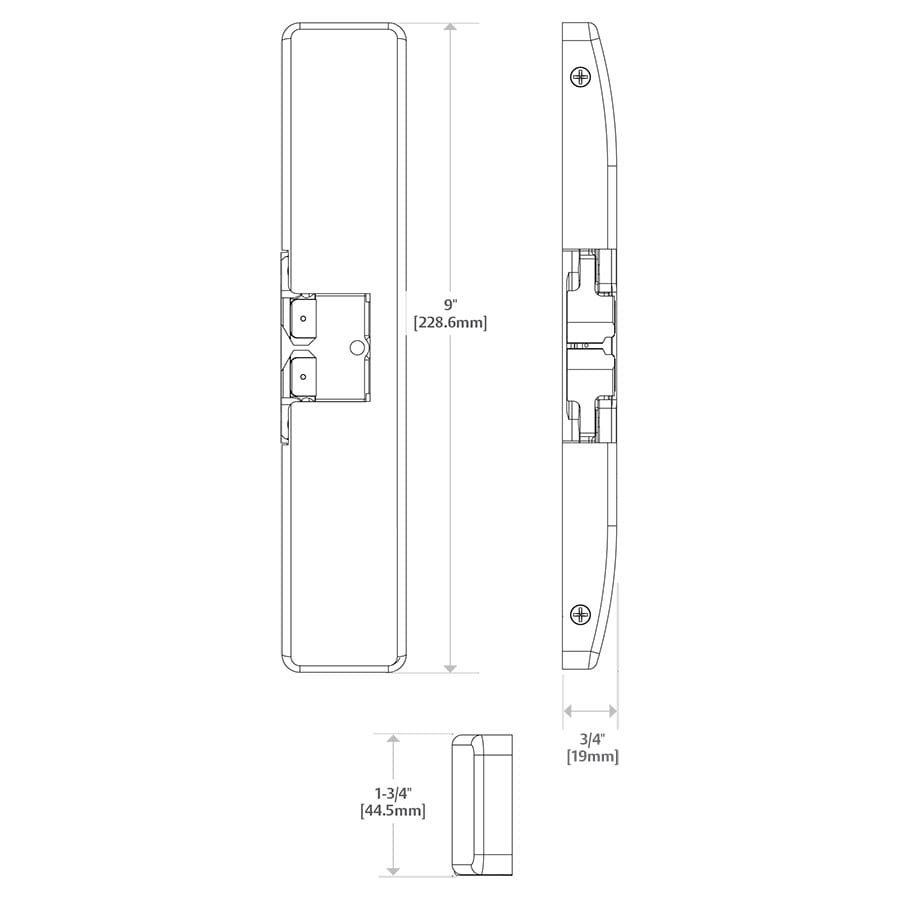

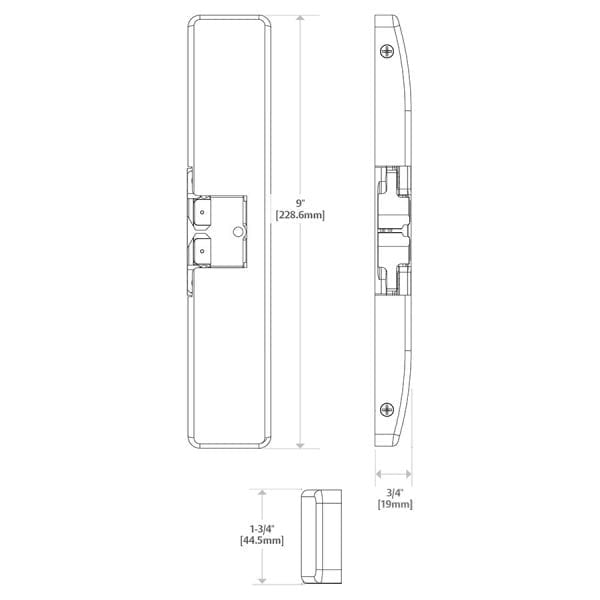

The 9500 Series is a 3 hour fire-rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4″ Pullman latch. All components are completely encased within its 3/4″ thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. The 9500 exceeds grade-1 standards for strength and performance. It is field selectable for fail secure and fail-safe operation, and for 12 or 24VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.

  • Endurance 1,000,000 cycles
  • Field selectable fail safe/fail secure
  • Dual voltage 12 or 24 VDC
  • Non-handed

Optional Features

  • LBM – Latchbolt monitor (detects when latchbolt is in a locked state)
  • LBSM – Latchbolt strike monitor (detects latchbolt and strike are in a locked state)

Certifications / Listings

  • UL 10C fire-rated, 3 hour (fail secure)
  • CAN4-S104 (ULC-S104) fire door conformant
  • WHI fire door listed
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 listed
  • UL 305 listed
  • ANSI/BHMA A156.31, Grade 1 (#E09371, #E09372, #E09373)
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant
  • California Fire Marshall listed
  • NFPA 80-07 compliant
  • RoHS compliant

Brand

Finishes

606 Satin Brass, 612 Satin Bronze, 613 Bronze Toned, 630 Stainless Steel, BSP – Black Suede Powder Coat

ANSI Grade

ANSI/BHMA A156.31, Grade 1

Usage

Heavy Duty

Fire Rating

3 Hour UL Listed

Voltage

Dual voltage 12 or 24 VDC
