Product Overview

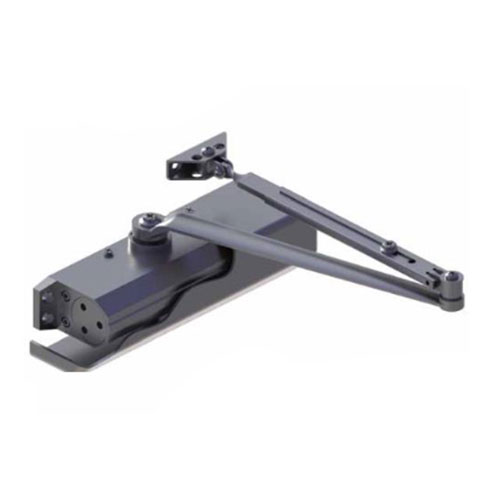

Hager 5300 Series Door Closer, 5300 MLT ADJ 1-6 BF, MLT – Multi-Mount, Size 1-6 Adjustable, Barrier Free
Grade 1 heavy duty surface door closer adjustable sizes 1-6. Ideal for schools, hospitals, and other high-use environments.
- Includes standard 5303 tri-pack arm
- MLT (Multi-Mount) – Regular, parallel-arm, and top jamb mount
- Standard, separate and independent, latch, sweep and backcheck valves
- Ideal for schools, hospitals, and other high-use environments
- Ideal choice for doors with a maximum weight of 250 lbs
- To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball-bearing hinges with this product
| Brand | |
|---|---|
| Finishes | ALM Sprayed Aluminum, DBZ Sprayed Dark Bronze, BLK Black |
| ANSI/BHMA Standard | ANSI/BHMA A156.4, Grade 1 certified |
| Fire Rating | UL Listed – UL10c compliant for positive pressure |
| Templating (Hole Pattern) | 3/4" x 9-1/16" |
| Body Construction | Cast Aluminum Body |
| Spring Size | Adjustable Spring Size 1-6 |
| Handing | Non-Handed |
| Cover | Full Cover |
| Mounting Options | Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side) |
| Door Applications | Hollow Metal, Wood or Aluminum |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Usage | Standard Duty |
| Warranty | Limited Lifetime Warranty |
