Product Overview

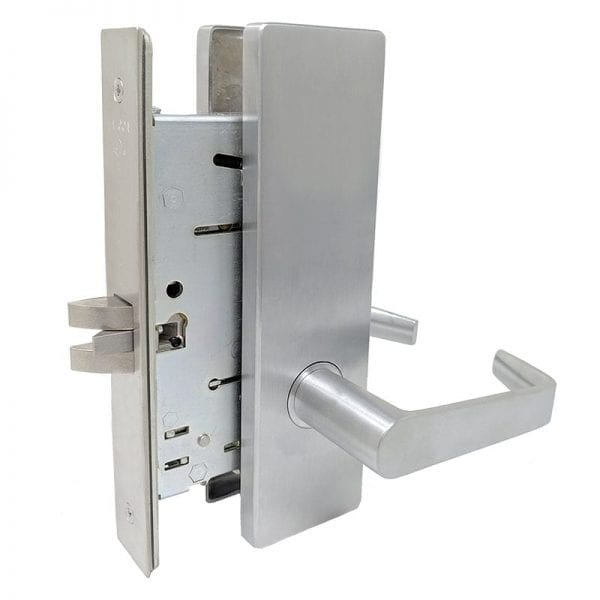

Falcon MA101 DN Passage Mortise Lock, Dane Lever, Napa Escutcheon
The MA Series is a heavy-duty, Grade 1 mortise lock that offers versatility, toughness, and dependability at an affordable price.
ANSI F01 - Passage - Latch bolt operated by lever from either side at all times.
- Forged escutcheons for added strength (8-1/8"H x 2-1/4"W)
- UL listed and certified Operational Grade 1 and Security Grade
- Cold-formed steel, zinc plated with dichromate for corrosion resistance
- Ability to easily re-hand the lock in the field
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 625 Bright Chrome, 630 Satin Stainless Steel, 643e Aged Bronze |
| Lock Function |
Passage |
| Usage |
Heavy Duty |
| ANSI Function |
F01 |
| ANSI Grade |
ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 |
| Fire-Rating |
“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated |
| Handing |
Right hand is standard; Reversible in the field |
| Backset |
2-3/4" |
| Case |
Cold formed steel, zinc dichromate plated, .090” thick |
| Latchbolt |
Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection |
| Faceplate |
(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs |
| Strike |
Meets ANSI AII5.1 for frame preparation. Strike is non-handed |
| Door Thickness |
1-3/4" |
| Lever Design |
DN Dane Napa |
