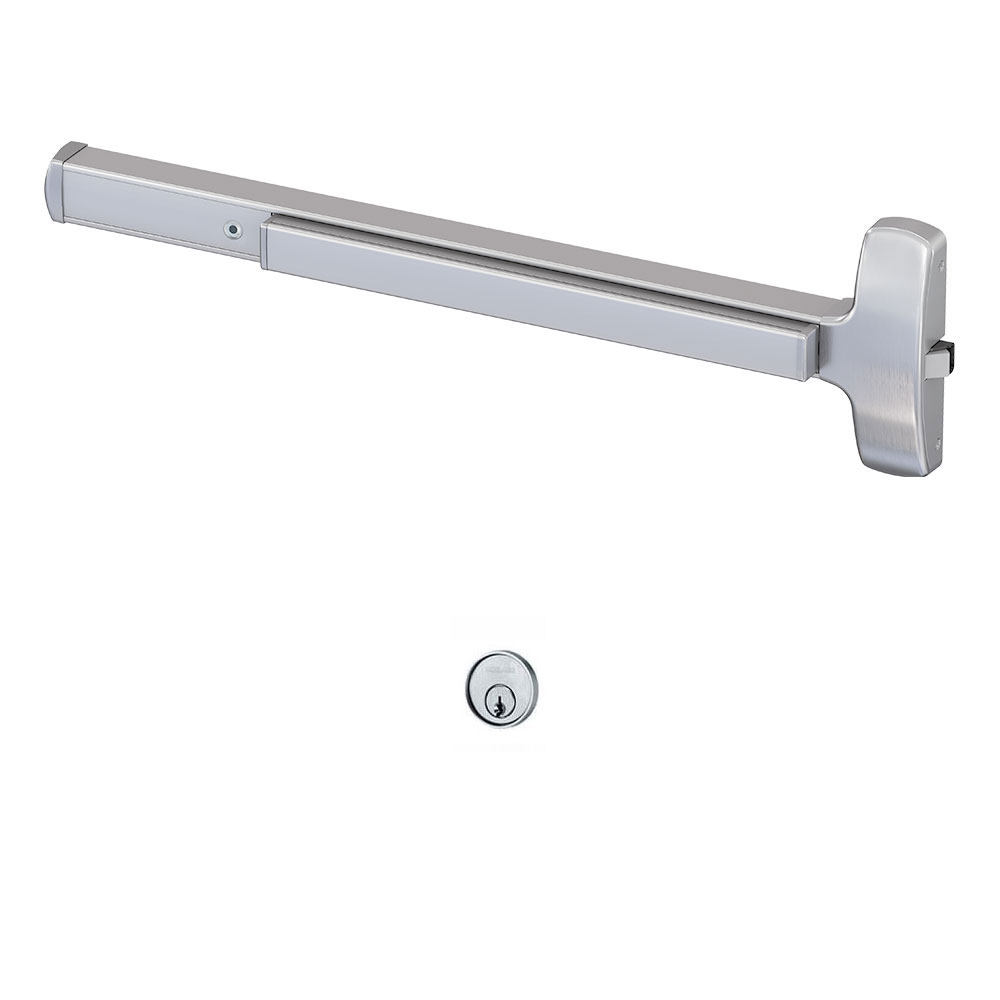

Falcon 25-R-NL-OP Rim Exit Device with 110NL-MD Night Latch Cylinder Kit for Metal Doors

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified – Made in USA
  • ANSI Function 03 (night latch – key retracts latchbolt)
  • Includes 110NL-MD cylinder kit (cylinder sold separately)

Available Options:

  • Total

Product Overview

Falcon 25-R-NL-OP 25 Series Rim Exit Device with 110NL-MD Night Latch Cylinder Kit

The 25-R-NL-OP panic rim exit device is for use with single doors and double doors with a mullion.

No exposed screws or rivets on the back of the device for a streamlined design and clean lines – when installed on full glass doors. The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch, and a streamlined touch bar design.

  • Includes 110NL-MD Night Latch Cylinder Kit
  • Deadlocking latchbolt standard
  • Stock Sizes: 3′ and 4′ – Cut to size in the field

Von Duprin 110NL-MD Cylinder Kit

  • For use metal doors only
  • ANSI Function: 03 (Key Retracts Latchbolt)
  • Optional Pull Required
  • Rim cylinder must be ordered separately
  • Meets ANSI 156.3-2001 Grade 1 standards

Brand

Finishes

US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
Length

3'0" (2'8" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)
Hand

Non-handed
Trim

110NL-MD Nightlatch Cylinder Assembly
Cylinder

Requires rim cylinder (sold separately)
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Usage

Heavy Duty
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Strike

299 roller strike standard, 299F strike with fire-rated device
Latchbolt

Stainless steel, 3/4" throw – Deadlocking
Fasteners

All mounting screws are concealed, sheet metal screws and machine screws standard
Projections

2-3/4" maximum, 2" dogged
Stile Type

Wide (Standard)
Minimum Stile Width

4" w/ Standard Roller Strike
Door Applications

1-3/4" Hollow Metal Doors
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
Falcon_25-R_F-25-R_Installation_Instructions Von_Duprin_110NL_Cylinder_Preparation_Installation_Instructions
