Falcon 24-C-EO Narrow Stile Concealed Vertical Rod Exit Device

$950.25
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, Certified ANSI A156.3-2001 grade 1
  • Fits door stiles as narrow as 2-1/4"
  • Streamlined design and clean lines

Available Options:

Clear

Product Overview

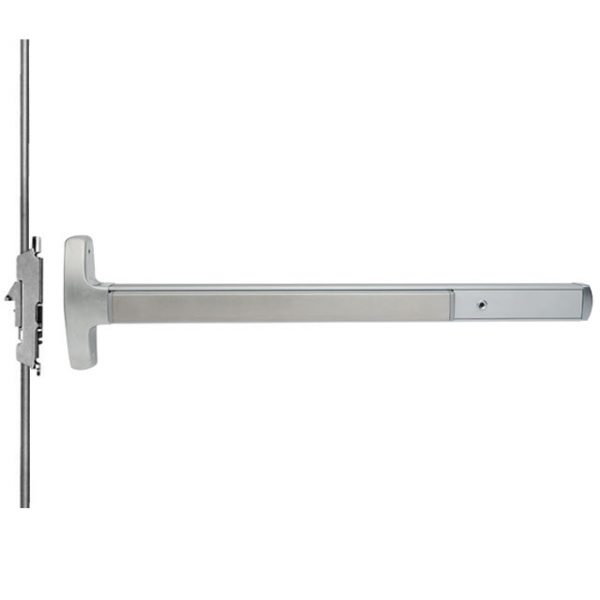

Falcon 24-C-EO Grade 1 Concealed Vertical Rod Exit Device, Exit Only

Concealed vertical rods add strength to the door, while maintaining an attractive appearance. The Falcon 24-C Series concealed vertical rod device offers great value, clean styling, a versatile narrow stile design and the security benefits of two-point latching. Falcon’s patented center slide mechanism allows easy rod adjustment in the field.

  • EO = Exit Only (Outside Trim Sold Separately)
  • For 7'0" door height
  • 2-1/4" minimum stile when used in pairs
  • Certified ANSI A156.3-2001 grade 1 standards

Brand

Finishes

US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, 313AN Anodized Dark Bronze

Length

3'0" (2'8" to 3'0" Doors), 4'0" (3'2" to 4'0" Doors)

Usage

Heavy Duty

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Hand

Non-handed

Device Type

Concealed Rod Device

Latchbolt

Top stainless steel, top latch 3⁄4" throw. Bottom bolt 1⁄2" throw.

Strike

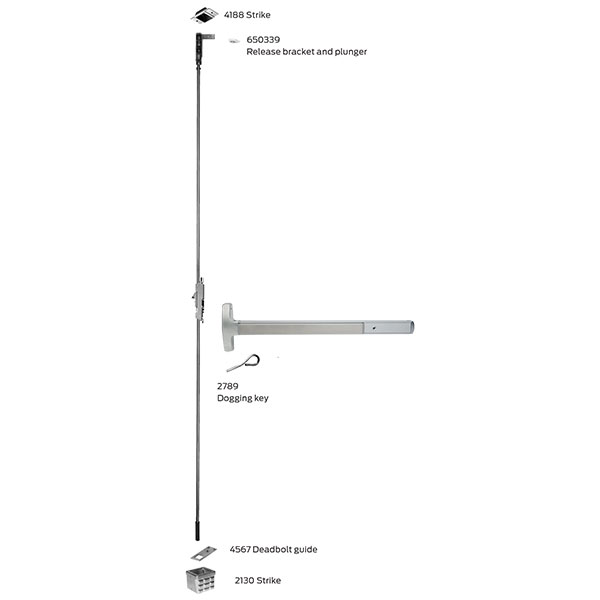

4188 mortised top and 2130 flush strike bottom

Vertical Rods

Furnished to length based on 40" horizontal CL to finished floor and a 7'0" door

Fasteners

All mounting screws are concealed, sheet metal screws and machine screws standard

Stile Type

Narrow

Minimum Stile Width

2-1/4" minimum when used in pairs. (6" minimum on wood doors)

Dogging Feature

Half turn hex dogging standard

Projections

2-3/4" maximum, 2" dogged

Door Applications

1-3/4″ Thick Doors

Buy American Act Compliance

Meets Buy American Act - Made in USA
