Dormakaba QED113 Fire Rim Exit Device

Usually Ships: 20-30 Business Days

Heavy Duty, ANSI/BHMA A156.3 Grade 1
ANSI function 01, exit only (trim sold separately)
UL Listed for fire exit hardware

Available Options:

Finish

Length

Clear

Quantity:

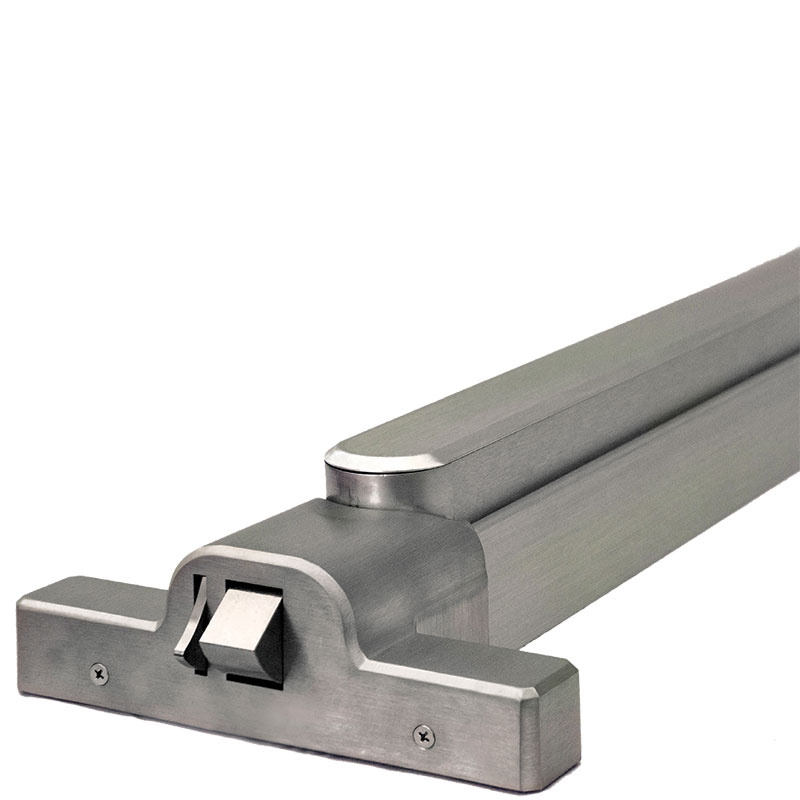

Dormakaba (formerly Stanley) QED113 Grade 1 Rim Exit Device, Wide Stile Pushpad, Fire-Rated, No Dogging, Exit Only

dormakaba’s Commercial Hardware QED100 Series exit devices are designed to accommodate the widest range of uses. The QED100 series is BHMA/ANSI Grade 1 certified, and significantly exceeds performance requirements. The QED100 series comes non-handed and field reversible.

Exit Only (Exit Device Trim sold separately)
UL Listed for Panic and Fire Exit Hardware
UL/cUL listed (3 hour) for “A” label door applications (8′ by 8′)
ANSI/BHMA A156.3 Series—Grade 1
ANSI A117.1 Section 404.2.6 Accessibility Code (ADA compliant)
Standard door thickness: 1-3/4″
Rim stile width: 4-1/4″ (108mm) minimum

Brand	Dormakaba
Finishes	313AN Anodized Dark Bronze, 626 Satin Chrome
Length	36" (32" to 36" Door Width), 48" (36" to 48" Door Width)
Usage	Heavy Duty
ANSI/BHMA Standard	ANSI/BHMA A156.3 Series—Grade 1
Fire Rating	UL/cUL listed (3 hour) for “A” label door applications (8' by 8')
Stile Type	Wide (Standard)
Minimum Stile Width	4-1/2"
Door Thickness	1-3/4"
Strike	8Q00255
Dogging Feature	None
Warranty	Lifetime Mechanical Warranty \| 3 Year Finish Warranty
