Dormakaba L1031 Simplex Mechanical Pushbutton Entry/Passage Lever Lock

Usually Ships: 1-2 Business Days
  • Keyless lock without batteries
  • Combination entry/passage functions
  • Heavy-duty, weather-resistant

Available Options:

Clear

Simplex L1031 Mechanical Pushbutton Cylindrical Lever Lock, Combination Entry/Passage Function Only, 2-3/4″ Backset, 1/2″ Throw Latch

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex L1000 Series provides exterior access by combination while allowing free egress. This mechanical lock, with lever option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

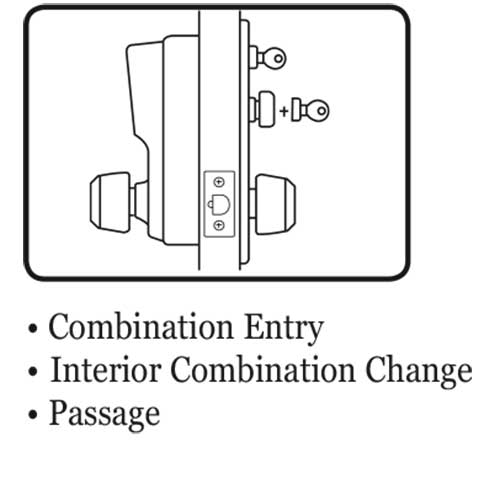

L1031: Combination Entry. Interior Combination Change. Passage: Allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).

  • A cost-effective access control solution
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Programming: Lock is easily programmed via keypad without removing lock from the door
  • Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
  • Vandal-resistant, solid metal pushbuttons
  • Factory-handed; not field reversible
  • 5″ Minimum stile recommended
  • D.O.D. Compliant 5220.22M for supplemental access control
  • 3-hour UL/ULC fire rating for “A” labeled doors
  • Weather resistant

Models: LL1031-03-41, LR1031-03-41, LL1031-05-41, LR1031-05-41, LL1031-026-41, LR1031-026-41, LL1031-26D-41, LR1031-26D-41

Brand

Finishes

US5 (609) Antique Brass, US3 (605) Bright Brass, US26 (625) Bright Chrome, US26D (626) Satin Chrome

Lock Function

Combination Entry/Passage Functions Only

Usage

Heavy Duty

Backset

2-3/4"

Latch

1/2" throw – 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Fire Rating

UL and cUL Listed – up to 3 Hours

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Door Thickness

1-3/4"

Warranty

3 Year Limited
