Dormakaba

Dormakaba C210 Passage/Closet Lever Set

$123.12
Usually Ships:  20-30 Business Days
  • ANSI/BHMA Grade-2 Certified
  • Both Levers Always Unlocked
  • ADA Compliant - 3 Hour Fire-Rated

Available Options:

Clear

Product Overview

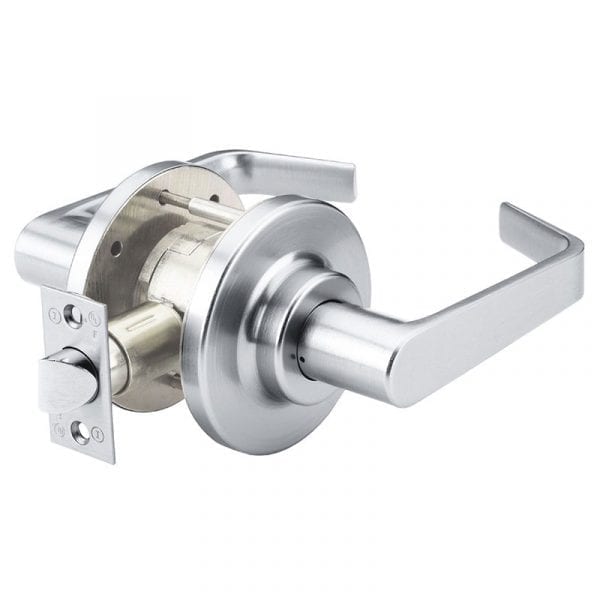

Dormakaba C210 Grade 2 Cylindrical Lever Lock, Passage/Closet Function, Satin Chrome Finish

The C200 grade 2 cylindrical locksets provide exceptional security, enhanced aesthetics, and rugged dependability. These locksets are built with a high-performance cylindrical chassis for all applications where ANSI/BHMA A156.2 Series 4000 Grade 2 products are required. Recommended applications include hotels, apartments, churches, municipal buildings, retail complexes, offices, and other commercial buildings.

ANSI F75 Passage Function: Latch bolt operated by trim from either side at all times.

  • 626 Satin Chrome Finish
  • LR (rectangular), LC (curved), or LG (straight) Lever, E Rose Standard
  • High-performance cylindrical chassis
  • Easy to install
  • UL listed for UL 10C
  • Fits 1-3/8" to 1-3/4" thick metal and wood doors
Brand

Lever Design

LR, LG, LC

Lock Function

Passage

Handing

Non-Handed

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Usage

Medium Duty

ANSI/BHMA Standard

ANSI/BHMA A156.2 Grade 2 Certified

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL Listed up to 3 Hours

Finishes

626 Satin Chrome
