Dexter

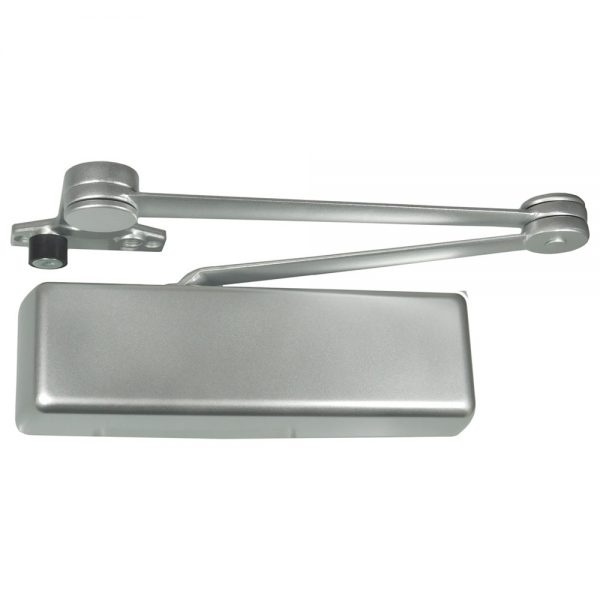

Dexter DCH4000-STD-FULL-DS Door Closer with Dead Stop Parallel Arm

$158.10
Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI Grade 1 certified
  • Fully Adjustable - Sizes 1-6
  • Includes dead stop parallel arm

Available Options:

Clear

Product Overview

Dexter DCH4000-STD-FULL-DS Grade-1 Door Closer, Cast Iron Body, Dead Stop Parallel Arm, Full Cover

Dead stop arm (DS): Non-handed, forged, heavy duty, parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.

  • Separate adjustable general speed, latch speed and backcheck
  • Comes standard with a universal screw pack, including self reaming and tapping screws
  • Single piece, cast iron body





Brand

Finishes

695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated)

Special Feature

Extra Duty Parallel Arm with Dead Stop

Templating (Hole Pattern)

2-1/4" x 5"

Usage

Heavy Duty

Mounting Options

Parallel Arm (Push Side)

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non-handed for Left or Right Swinging Doors

ANSI/BHMA Standard

Tested and certified under ANSI Standard A156.4 - Grade-1

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)

Cover

Full Cover

Door Applications

Hollow Metal or Wood
