Dexter C1000-PRIV Heavy Duty Privacy Lever Lock

Usually Ships: 1-2 Business Days

Heavy Duty, ANSI Grade 1
ANSI function F76
ADA compliant, 3-hour fire-rated

Available Options:

Finish

Lever Design

Clear

Quantity:

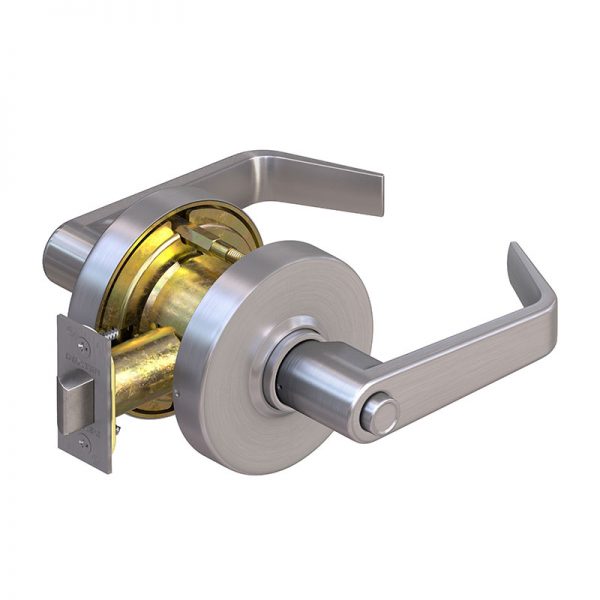

Dexter C1000-PRIV Grade 1 Privacy Cylindrical Lock, Regular Lever, 2-3/4″ B.S.

ANSI Function F76 – No key; emergency access coin turn outside; push-button inside; spring latch. Inside push button locks outside lever. Turn inside lever or close door to release button and prevent lock-out; outside coin turn provides emergency access. Inside lever is always free for immediate egress.

Grade 1, UL listed 3-hour
1-3/8″ to 2″ door range standard
All functions include 1-1/8″” x 2-1/4″ square-corner beveled latch with 2-3/4″ backset and ANSI 1-1/4″ x 4-7/8″ curved lip strike

Brand	Dexter
Finishes	613 Oil Rubbed Bronze, 626 Satin Chrome
ANSI/BHMA Standard	Meets ANSI/BHMA A156.2, Series 4000, Grade 1
Usage	Heavy Duty
Lock Function	Privacy
Lever Design	C: Curved Lever, R: Regular Lever
Backset	2-3/4"
Latch	1/2" throw – 1-1/8" x 2-1/4" face
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing	Non-Handed
Fire Rating	UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
