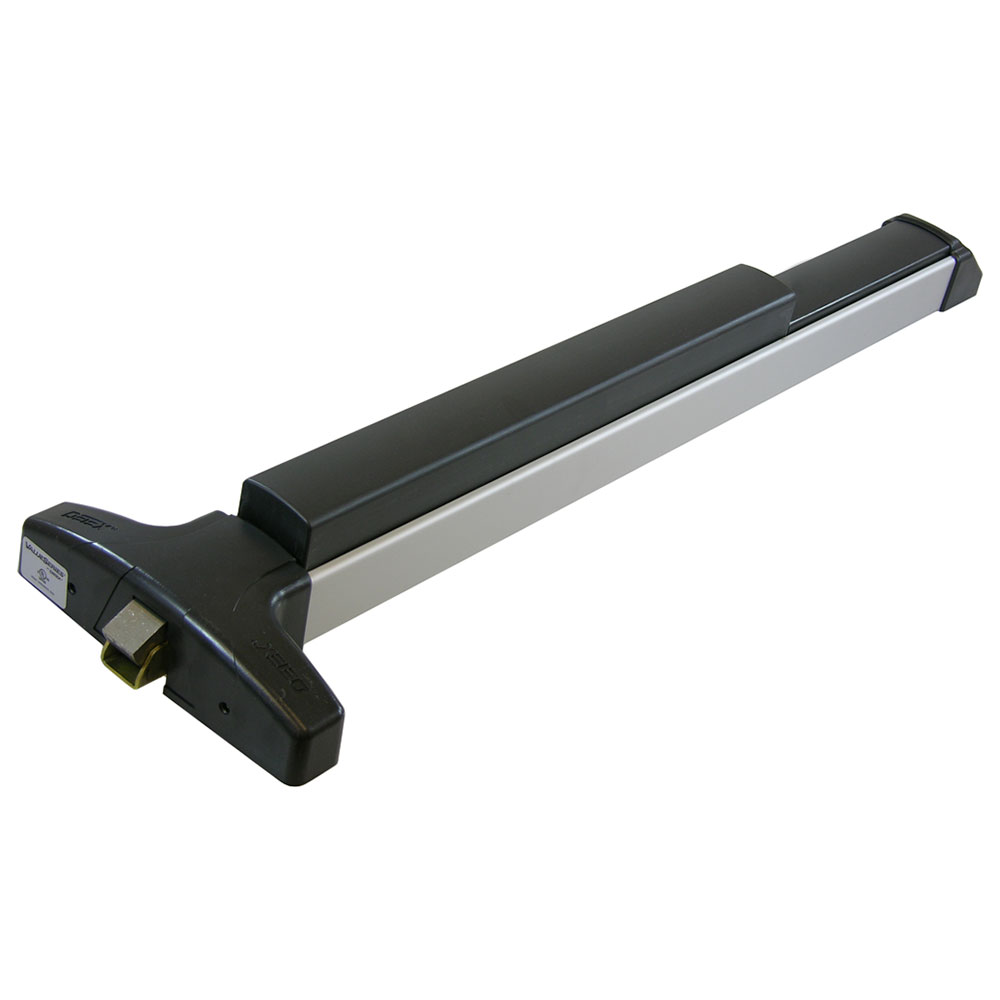

Detex V40 ER EX Value Series Rim Exit Device with Electric Latch Retraction, Request to Exit Switch

Usually Ships: 1-2 Business Days

ANSI/BHMA A156.3 Grade 1 certified
Continuous duty motor – quiet operation
Exit only (trim sold separately)

Available Options:

Finish

Length

Clear

Quantity:

Detex V40 ER EX FC3 Value Series Grade-1 Rim Exit Device, Electric Latch Retraction, Request to Exit Switch, Exit Only

The Electric Latch Retraction (ER EX) exit device option is designed for entrance and exit doors with panic hardware where remote unlocking, remote dogging, access control or automatic door operation is desired.

Exit Only (Detex Exit Device Trim sold separately)
Controls foot traffic, deters unauthorized exits, prevents loss and meets building code requirements
Durable design provides years of trouble free protection, saving on replacement costs
State-of-the-art electronics offer reliable security and instantaneous alarm
Momentary or maintained latch and pushpad retraction
Switches to monitor pushpad
Continuous duty motor – quiet operation
Flexible 3’ conduit kit, mounts to device end cap
Voltage – 24VDC
Latch Retraction power supplies are required and sold separately

Brand	Detex
Finishes	628 Anodized Aluminum, 711 Black Anodized Aluminum
Length	36", 48"
Electric Options	Electric Latch Retraction, Request to Exit
Voltage	24VDC
ANSI/BHMA Standard	ANSI/BHMA certified A156.3
Usage	Medium Duty
Fire Rating	Non-Fire-Rated
Includes Trim	No
Handing	Non-Handed
Stile Type	Wide (Standard)
Minimum Stile Width	3-1/2” with 99 surface strike (Std.) for single door, 4” for pairs – 2” narrow stile doors with NSK Narrow Stile Door Kit (sold separately)
Door Thickness	1-3/4" to 2-1/4"
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Warranty	10 Year Mechanical / 3 year Electrical Limited Manufacturer's Warranty
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
