Detex-ECL-230X-TDB-Gray
Detex-ECL-230X-TDB-Gray

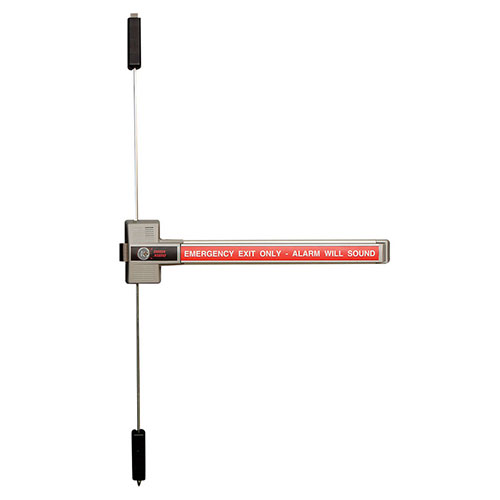

Detex ECL-230X-TDB Alarmed 3 Point (Top Bolt, Dead Bolt and Bottom Bolt) Panic Exit Control Lock

$1,154.72

This item ships FREE! Usually Ships: 1-2 Business Days
  • Fits 36″ to 48″ wide doors
  • 100-decibel alarm, powered by 9-volt battery (included)
  • Accepts standard rim cylinder (sold separately)

  • Total

Product Overview

Detex ECL-230X-TDB Alarmed Deadbolt Panic Hardware, Top Bolt, Dead Bolt, and Bottom Bolt, Fits 6’8” to 7’0″ door Height, Gray

The ECL-230X-TDB is a code compliant, battery alarmed, rugged 3-point dead bolt, panic device with photo-luminescent sign providing maximum security and a 100 decibel alarm for secondary exits. Independent laboratory testing shows that the ECL-230X-TDB can withstand up to 16,000 pounds of pull force.

  • Attack resistant design for maximum holding force
  • Proven durability and reliability at a reasonable price
  • Time tested construction resists attack from the inside
  • Durable photo-luminescent sign absorbs light to then “glow in the dark” when lights are dimmed
  • 3-point, 1″ throw dead bolt lock with just over 3/4” engagement with the frame, and 3/4” throw top and bottom locks with 5/8” engagement with the strike
  • UL 305 Listed Panic Hardware
  • 100 decibel alarm, powered by9-volt battery (included)
  • Rim Cylinder Required (sold separately)
Brand

Finish

Gray
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Handing

Non-Handed
Power

Long-life 9V battery (included)
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Door Width

36" to 48"
Door Height

Fits 6’8” to 7’0" door
Door Thickness

1-3/4" to 2-1/4"
Door Applications

Metal or Wood Doors
