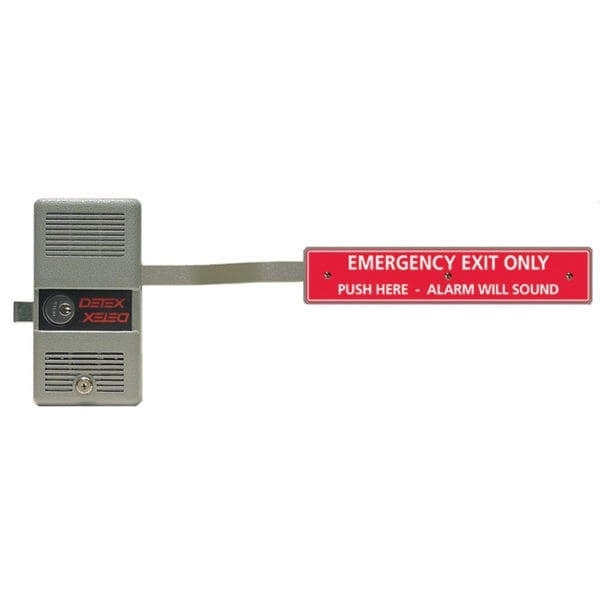

Detex ECL-230D-PH Alarm Panic Exit Control Lock with Long Bar

Usually Ships: 1-2 Business Days
  • Long Bar for 34″ to 48″ Wide Doors
  • 100 decibel alarm, powered by 9-volt battery (included)
  • Accepts standard rim cylinder (sold separately)

Available Options:


Detex ECL-230D-PH UL-Listed Panic Hardware Exit Control Lock, with Long Bar, 38 In. to 48 In. Door Width

The ECL-230-PH is a code compliant, battery alarmed, rugged dead bolt, panic device with steel plate and photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits.

  • ECL-230D-PH for use on doors that require Panic Hardware
  • Minimum standard door width for ECL-230D-PH is 34″
  • Single point deadbolt locking device, 1” throw
  • Unauthorized pressing of exit bar emits high decibel, 100db alarm
  • Inside key control allows alarm bypass
  • UL listed panic hardware
  • 9 volt standard battery included
  • Rim Cylinder Required (sold separately)




Black, Gray

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Door Thickness

1-3/4" to 2-1/4"




Single point – 1" throw, saw resistant


1-1/8" Rim Cylinder (Sold Separately)

Door Width

Minimum 34″, Maximum 48″

Detex ECL-230D Installation Instructions
