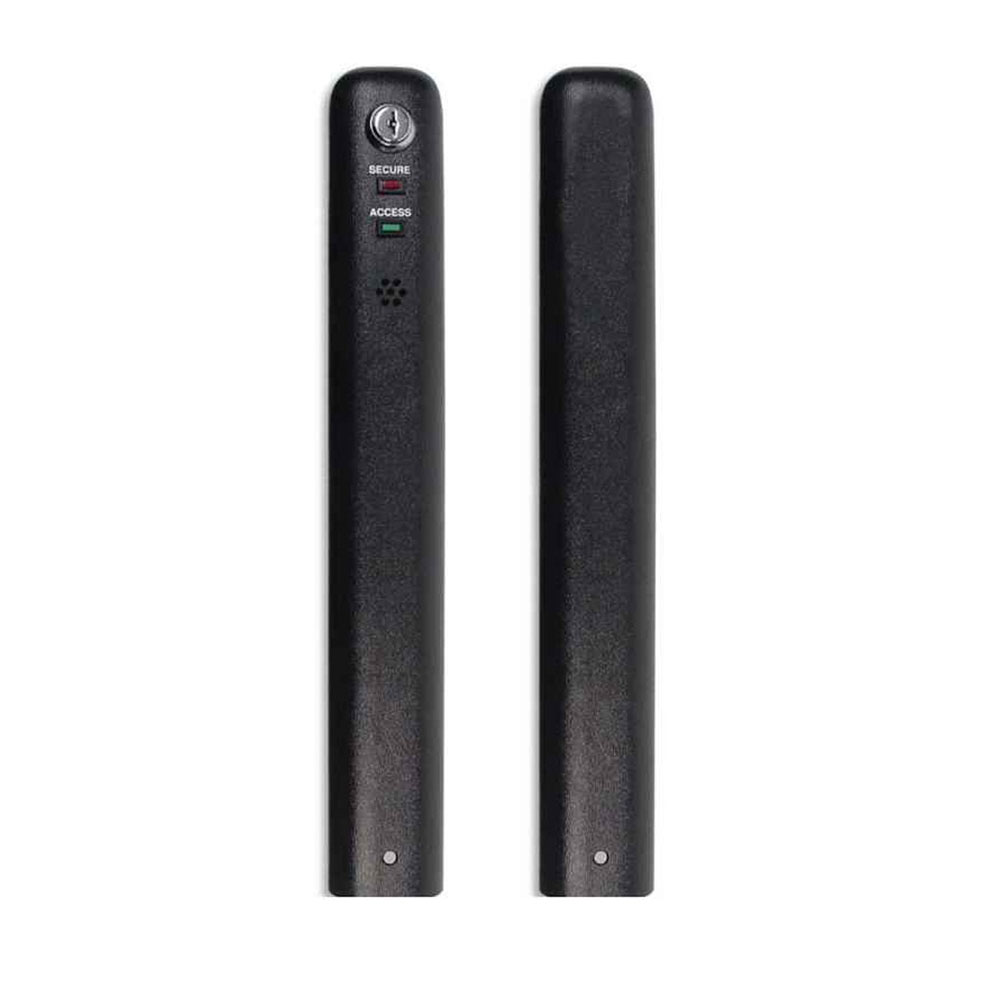

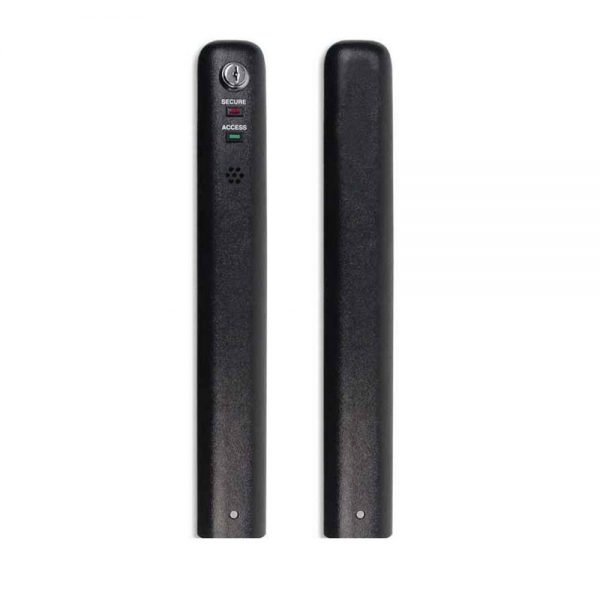

Detex AT-5200 Tailgate Detection System

Detex AT-5200 (ES5200) Tailgate Detection System

The Detex AT-5200 Series Tailgate Detection System assures that only one individual enters a secured doorway for each authorized card read; compatible with most card reader technologies the AT-5200 is easy to retrofit. This unique and cost effective optical security system, which uses unique algorithms and infrared sensor beams to detect tailgating, is perfectly suited for areas requiring tighter security. The potential applications for the AT-5200 are unlimited, however typical applications include employee entrances, computer rooms, bank vaults, dorm entrances, and areas with restricted access. Its subtle design does not distract from interior aesthetics and it mounts easily on standard door frames.

Benefits

• Adds additional security to a restricted area where unauthorized entry must be controlled
• Integrated door prop alarm for additional security
• Compatible with most access control systems and easily retrofits, providing enhanced security
• High throughput easy entry or exit for authorized personnel
• Encourages employees, students, visitors, etc. to maintain access control procedures
• ADA compliant
• Blends in with architectural styling

Features

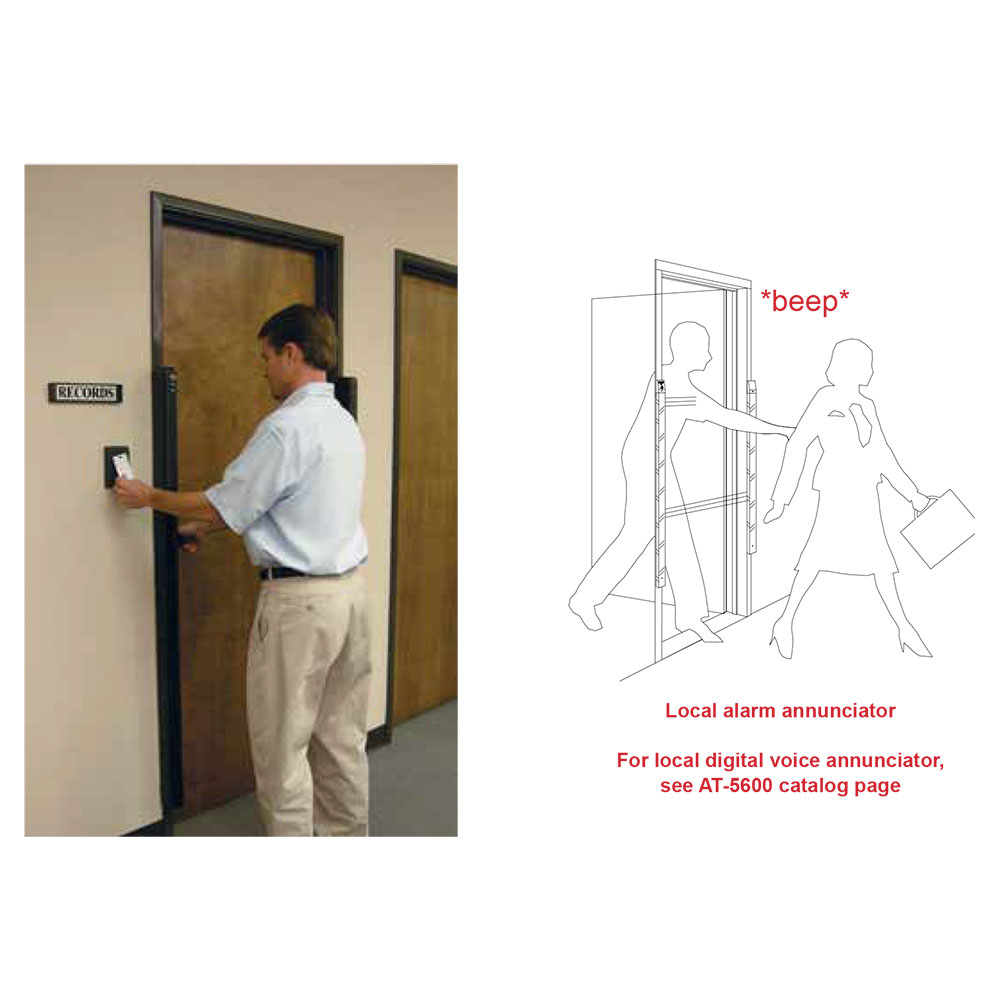

• Local alarm annunciator; unauthorized access/egress is annunciated locally and with the access control system
• Key switch for local alarm shunt/override
• Alarm 3 second fixed time/auto reset
• Mounts on standard width door frame or wall (80” max width)
• Spacer mounting kit standard, can be used as a raceway for wiring
• Alarm can be reset by a remote contact
• Remote annunciator plates fit in a single gang box
• Status indicator lights (Wait or Proceed)
• Field configurable for card in/card out or card in/free exit operation
• Adjustable access period
• Alarm status relay for remote annunciation
• Tamper Switch
