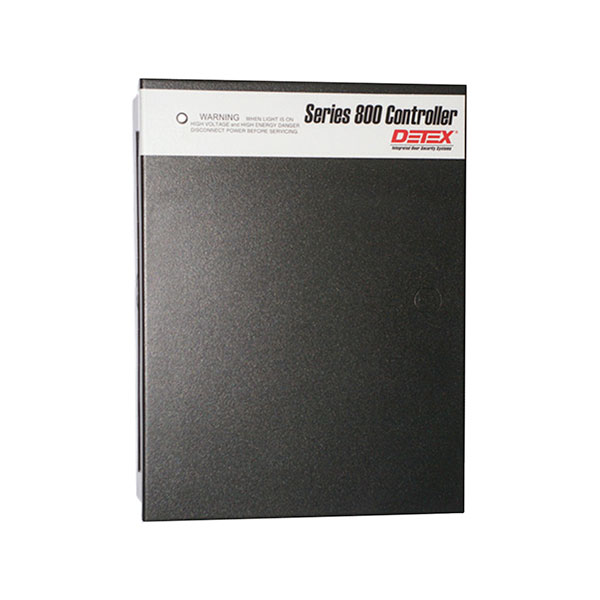

Detex 12-800 Logic Controller & Power Supply

Detex 12-800-DE1 Logic Controller & Power Supply Unit for Delayed Egress, Access Control, and Interlock Systems

The Detex 12-800 is a universal logic and power supply controllers that allow for total control over all electrified hardware. The controller receives input from a switch, access control or any dry contact device and processes it into the desired output. One controller can manage applications for up to two doors, such as standard egress, delayed egress and interlocks. All connections for local or remote signaling are contained in one box. The 12-800 logic controllers provide at least 2A of DC power at the door. A battery backup/charging circuit is standard with each controller to deliver an uninterrupted source of power for up to 4 hours (battery sold separately).

Models

• 12-800-DE1 – 15 second Delayed Egress with Remote Bypass (for 10 EX W)
• 12-800-DE2 – 15 second Delayed Egress (for V40 EX W)

Benefits:

• Central terminal connections provide easy wiring
• Inline fuse protects against power surges
• Designed specifically to support electric locks, access control systems and delayed egress systems
• Multiple fire alarm relay input options assure compliance to various life safety codes
• On/Off switch allows for easy service and inspection

Features:

• Power supply and controller all in one box
• Controls up to 2 separate doors for standard egress or 2-door interlock applications
• 1 controller required for each independent delayed egress application
• Output relays for locks, local alarm and remote alarms
• Relays may be configured to wet or dry connections
• Status LED’s toggle on or off for easy troubleshooting
• Connections are labeled with either numbering scheme or label with text to identify circuits
• Single AC line voltage required to activate
• Dual voltage selection (12/24VDC)
• 9VDC, 100mA output terminal tap
• Fuse protection
• Battery backup circuit (std)

Specifications:

• 110VAC input
• 12 or 24 VDC output, 2A
• Lock Relay 2A
• Remote Relay 2A
• Controls 2 doors within 100 feet using 18ga stranded wires
• Bolt Position /Door Position Switches Relay 2A
• Local Alarm Relay 5A
• UL Listed Power Supply and Special Locking Arrangement (Delayed Egress)
• Detex Limited Warranty: 3 Year Limited Manufacturer’s Warranty
