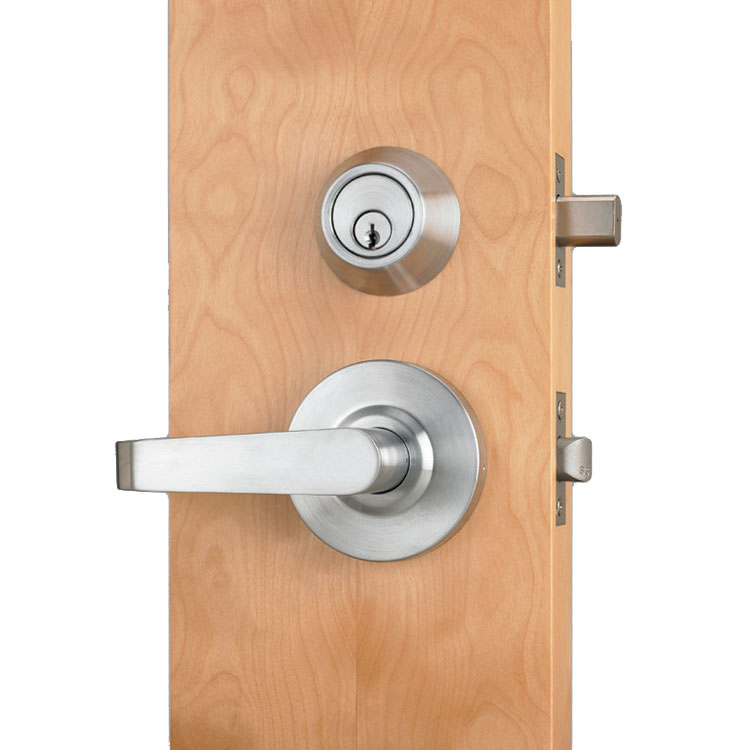

Design Hardware I-75-F Passage Single Locking Interconnected Lock

$152.63
Usually Ships:  3-5 Business Days
  • BHMA Certified ANSI A156.12 Grade 2
  • ANSI F95 function - entrance single locking
  • UL listed for 3-hour fire door

Available Options:

Clear

Product Overview

Design Hardware I-75-F Passage Single Locking Interconnected Lock - Grade-2, ANSI F95, 4" CTC Length, 2-3/4" B.S., T-Strike, Flat Lever, Schlage C Keyway, US26D Satin Chrome Finish

Grade 2 – Standard Duty, Interconnected/Cylindrical Lock

The I Series is a cylindrical lock and deadbolt combination that was designed using the V & D Series. Built to simultaneously retract both the deadbolt and latch, this lock provides both security and one-step egress.

ANSI F95 - Deadbolt is thrown or retracted by key in upper deadbolt cylinder from outside. or by thumb turn inside. Latchbolt is retracted by rotating lever from either side. Rotating inside lever retracts both deadbolt and latchbolt simultaneously.

  • Provides superior protection with deadbolt and interior lock combo
  • Designed for fast and easy installation
  • Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
  • Trim: 5″ Solid zinc diecast levers, 3″ wrought brass roses
  • Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
  • 2 3/4″ backset std. with 1 1/8″ x 2 1/4″ latchface
  • Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
Brand

Finishes

US26D (626) Satin Chrome

Lock Function

Single Locking Entry

Backset

2-3/4"

Latch

½” Throw. “UL” Listed for 3-hour doors

Deadbolt

1” Throw

Keyway

Schlage C Keyway

Strike

2 3/4” T strike & Full lip strike w/ 1/4” R.C. x Standard Deadbolt strike

Fasteners

Combination screws for wood or metal doors & frames

Usage

Medium Duty

ANSI/BHMA Standard

Meets ANSI - A156.12, Series 4000, Grade 2 Standards

ANSI Function

F95

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

Handing

Non-Handed

Door Thickness

1-3/4" to 2"
