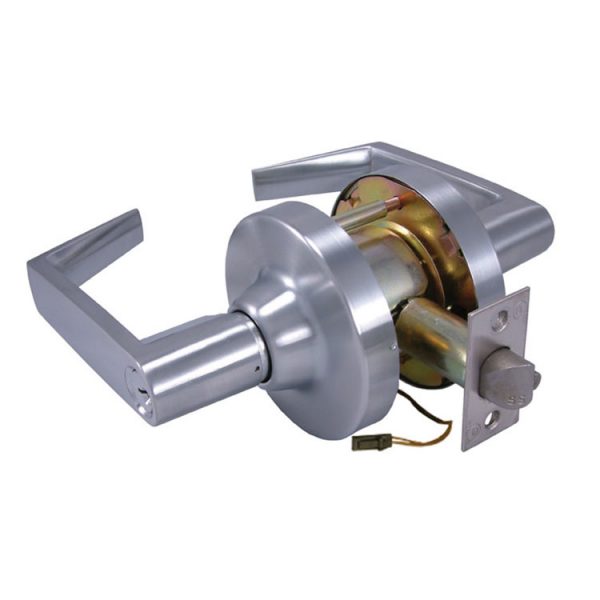

Design Hardware E-Z-86-F Electrified Storeroom Lever Lock

$224.38
Usually Ships:  3-5 Business Days
  • Extra heavy-duty, meets ANSI Grade 1 standards
  • Accepts either 12 or 24V AC/DC
  • Fail Safe/Fail Secure field selectable

Available Options:

Clear

Product Overview

Design Hardware E-Z-86-F Lever Lockset, Electrified Storeroom Function, Extra Heavy-Duty Grade-1, (F) Flat Lever Design, US26D Satin Chrome Finish

The electrified cylindrical lock allows remote key access and egress control for standard commercial use applications where security and safety is critical. Common applications include computer rooms, meeting rooms, classrooms and interior doors.

  • Allows remote key access and egress control for standard commercial use applications where security and safety is critical
  • Common applications include computer rooms, meeting rooms, classrooms, and interior doors
  • Operating Voltage: Accepts either 12 or 24V AC/DC (10.8V – 26.4V)
  • Amperage: 250mA MAX Inrush, l0mA MAX Holding
  • Tested to withstand over 2 million cycles

Specifications

  • Lock Chassis: Steel, Zinc dichromated for Corrosion Resistance
  • Trim: 5″ Solid zinc diecast levers, 3 1/2″ wrought brass roses
  • Lever Return: Independent lever return springs to prevent lever sag
  • Standard Latch: 2-3/4" backset with 1-1/8" x 2-1/4" latchface – Stainless steel latchbolt w/ 3/4" projection
  • Handing: Non-Handed – Completely reversible
  • Options: REX - Request to exit switch (REX)
Brand

Finishes

US26D (626) Satin Chrome

Lock Function

Electrified Storeroom

Usage

Heavy Duty

ANSI Grade

Meets ANSI - A156.2, Series 4000, Grade 1 Standards

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Backset

2-3/4"

Latch

Stainless steel latch bolt with 3/4” projection, 1-1/8" x 2-1/4” latchface

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Handing

Non Handed – Completely Reversible

Fasteners

Combination screws for wood or metal doors & frames
