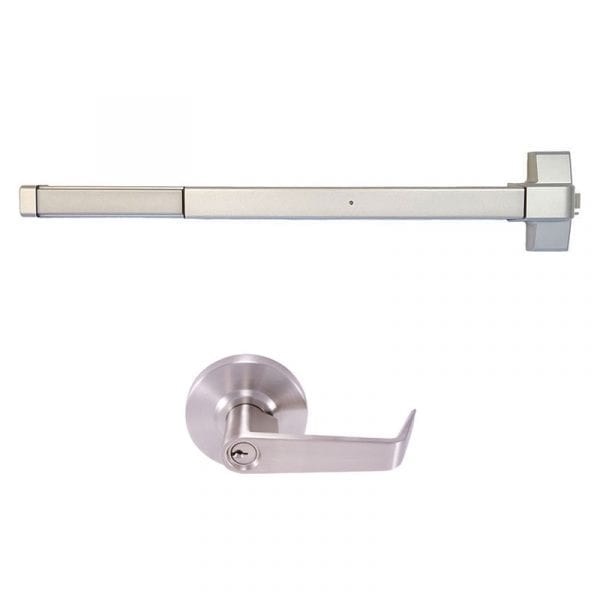

Design Hardware 2000R-KIL Rim Exit Device with Entry Lever

Usually Ships: 3-5 Days
  • Meets ANSI A156.3 – Grade-1 Standards
  • For use w/ Metal or Wood Doors
  • 2000R with KIL Lever Trim (Key Locks/Unlocks Lever)

Available Options:

Clear

The 2000R is an economical exit device option that is competitively priced to keep your project on budget. The 2000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act providing you with durability, toughness, and safety. Design Hardware products meet or exceed industry standards and can be substituted for any other specified brand.

The KIL trim is ideal for most applications because it meets all ANSI and ADA requirements. It is non-handed and field reversible. It’s thru bolt design and heavy-duty cross-shaped stainless actuator ensure a secure fit

  • Includes Entry Lever (Operates as Classroom Function – Unlock/Lock w/ Key)
  • UL Listing: UL Listed for Panic Exit Hardware
  • (Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)

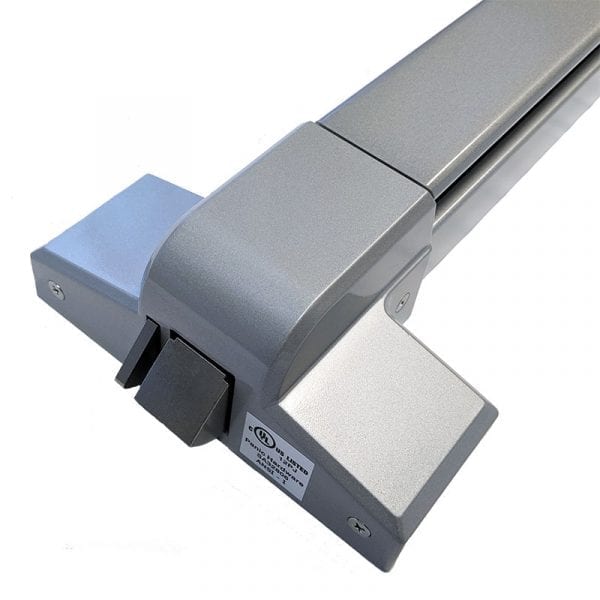

  • Center Case Dim.: 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick – 4″ Minimum stile required
  • Mechanism Case Dim.: 1-5/8″ Height x 1-13/16″ Wide
  • US26D Satin Chrome Lever w/ Aluminum Device
  • US10B Oil Rubbed Bronze Lever w/ Dark Bronze Device
Brand

Finish

Aluminum, Dark Bronze

Model

2000R w/ Dogging Feature, F2000R – 3 Hour Fire-Rated Device (No Dogging)

Length

33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")

Trim

KIL (Entry Lever)

Keyway

Schlage C Keyway

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards

Usage

Medium Duty

Fire Rating

2000R Non-Rated – F2000R 3 Hour UL Listed

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

Handing

Non Handed – Completely Reversible

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Latchbolt

Deadlatching, 5/8" throw

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)

Fasteners

Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)

Door Applications

1-3/4″ Thick Metal or Wood Doors

2000R Installation Instructions F2000R Installation Instructions KIL Installation Instructions
