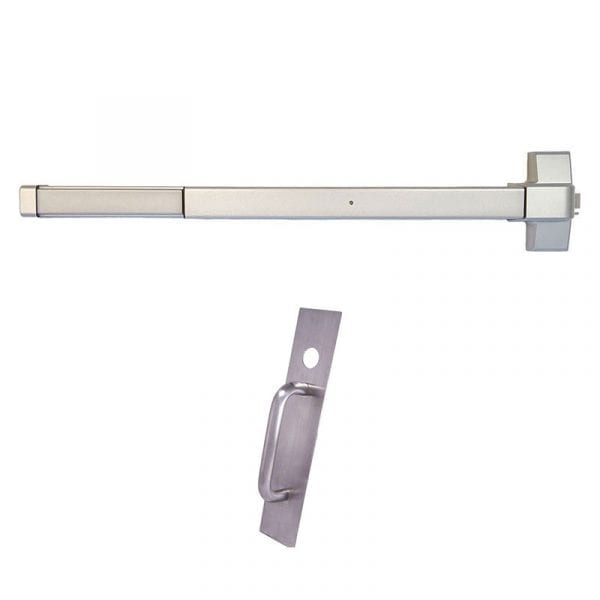

Design Hardware 2000R-2P-NL Rim Exit Device with Heavy-Duty Nightlatch Pull

Usually Ships: 1-2 Days
  • Meets ANSI A156.3 – Grade-1 Standards
  • For use w/ 1-3/4″ Metal or Wood Doors
  • 2000R-AL with 2P-03NL US32D Nightlatch Pull (Cylinder Sold Separately)

Available Options:

Clear

The 2000R is an economical exit device option that is competitively priced to keep your project on budget. The 2000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act providing you with durability, toughness, and safety. Design Hardware products meet or exceed industry standards and can be substituted for any other specified brand.

DFP-03NL: Economical pull trim option for 2000R. Will cover 161 prep on door. Thru-bolted design thru bolts to head of exit device.

  • Includes 2P-03NL Nightlatch Pull (Key Retracts Latchbolt) – Less Rim Cylinder
  • 689/AL – Aluminum Finish Device w/ US32D Pull
  • UL Listing: UL Listed for Panic Exit Hardware
  • (Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Center Case Dim.: 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick – 4″ Minimum stile required
  • Mechanism Case Dim.: 1-5/8″ Height x 1-13/16″ Wide

2P-03NL Pull w/ Cylinder Hole

  • Night latch Function – Key Retracts Latch
  • Thru bolts to head of exit device
  • Stainless Steel Construction
  • Pull Plate: 3″ Wide x 13-7/8″ Height x 1/16″ thick
  • Pull: 3/4″ diameter hollow x 6-1/4″ ctc x 27/16″ projection
Brand

Length

33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")

Finish

Aluminum

Trim

2P-03NL (Night Latch Pull Trim)

Cylinder

1-1/8" Rim Cylinder (Sold Separately)

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards

Usage

Medium Duty

Fire Rating

2000R Non-Rated – F2000R 3 Hour UL Listed

Handing

Non Handed – Completely Reversible

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Latchbolt

Deadlatching, 5/8" throw

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)

Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
