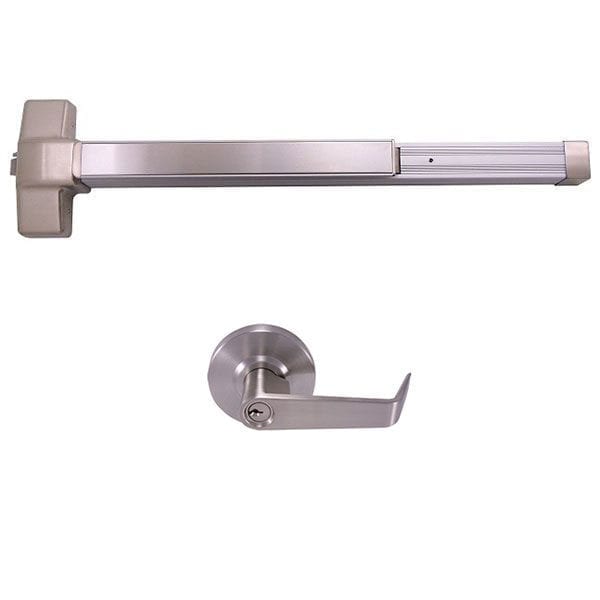

Design Hardware 1000R-KIL Rim Exit Device with Entry Lever

Usually Ships: 2-3 Days
  • Heavy Duty – ANSI A156.3 – Grade 1 Standards
  • For use w/ 1-3/4″ Metal and Wood Doors

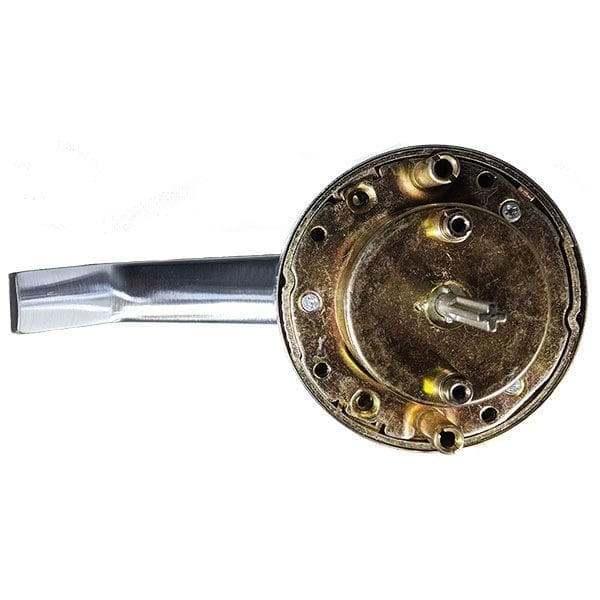

  • 1000R with KIL Lever Trim (Key Locks/Unlocks Lever)

Available Options:

  • Dark Bronze
  • Stainless Steel
Clear

The 1000 Series meets ANSI A156.3-Grade 1 Standards and comply with the ADA American Disabilities Act – providing you with durability, toughness, and safety. Design Hardware products all meet or exceed industry standards and can be substituted for any other specified brand. The KIL trim is ideal for most applications because it meets all ANSI and ADA requirements. It is non-handed and field reversible. It’s thru-bolt design and heavy-duty cross-shaped stainless actuator ensure a secure fit

  • Includes Entry Lever (Operates as Classroom Function – Unlock/Lock w/ Key)
  • UL Listing: UL Listed for Panic Exit Hardware
  • (Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Center Case Dim: 8″ Height x 2-7/8″ Wide x 2-13/16″ Thick – 4-1/2″ Minimum stile required
  • Mechanism Case Dim: 2-3/16″ Height x 2-3/16″ Wide
  • US26D Satin Chrome Lever w/ Stainless Steel Device
  • US10B Oil Rubbed Bronze Lever w/ Dark Bronze Device
Brand

Finish

Dark Bronze, Stainless Steel

Model

1000R – w/ Dogging Feature, F1000R – 3 Hour Fire-Rated Device (No Dogging)

Length

33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")

Construction

Heavy Duty Extruded Anodized Aluminum Channel & Steel Chassis

Trim

KIL (Entry Lever)

Keyway

Schlage C Keyway

ANSI Grade

Meets & Exceeds ANSI A156.3 – Grade 1 Standards

Usage

Heavy Duty

Fire Rating

1000R Non-Rated – F1000R 3 Hour UL Listed

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

Handing

Completely Reversible

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Latchbolt

Deadlocking latchbolt with 5/8″ projection

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)

Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)

1000R Installation Instructions 1000R Template F1000R Installation Instructions F1000R Template KIL Installation Instructions
