Product Overview

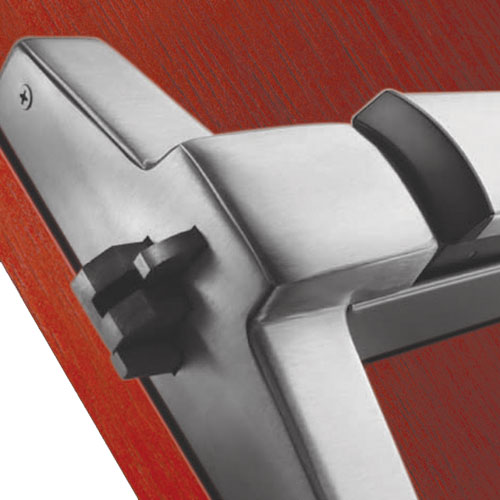

Corbin Russwin ED5200S Grade-1 Panic-Listed SecureBolt® Rim Exit Device
Deadbolt-style latch design provides increased security by resisting unauthorized entrance from credit cards, crowbars, door rattling, etc.
- Exit Only (Corbin Russwin outside trim sold separately)
- Is more resistant to vector forces, which results in less force against the frame, thus eliminating door/frame separation
- Provides increased stability of openings with mullions
- Designed for maximum holding power
- Delivers higher security and added resistance against vandalism and authorized entry
- Designed for standard width stile applications on wood and metal doors
- All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware.
- UL symbol on active case cover indicates listing
Applications
- Schools
- Hospitals
- Office Buildings
- Theaters
| Brand | |
|---|---|
| Finishes |
605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 630 Satin Stainless Steel, 613e Dark Oxidized Satin Bronze equivalent, BSP Black Suede Powder Coat |
| Length |
36" (for 30" to 36" Doors), 48" (W048 for 36" to 48' Doors) |
| ANSI/BHMA Standard |
Meets A156.3, Type 1, Grade 1 |
| Usage |
Heavy Duty |
| Fire-Rating |
None |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Stile Type |
Wide (Standard) |
| Latchbolt |
Full 3/4" projection, 1" wide, positive deadlocking by auxiliary bolt |
| Strike |
Surface-mounted 3/8" (10mm) diameter roller strike |
| Dogging Feature |
Half turn hex dogging standard |
| Handing |
Non Handed – Completely Reversible |
| Door Applications |
1-3/4" Metal and Wood Doors |
| Warranty |
5 Year |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
