Corbin Russwin DL3212 Grade-1 Double Cylinder Deadbolt, 2-3/4" Backset

Ideal for heavy-duty industrial and security applications, the DL3200 Series is a high-grade cylindrical deadbolt that is ANSI/BHMA Grade 1 certified.

ANSI E0141 Double Cylinder Deadlock

  • By key either side
Brand

Finishes

US26D (626) Satin Chrome, US10B (613) Oil Rubbed Bronze, US26 (625) Bright Chrome, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass, BSP Black Suede Powder Coat, WSP White Suede Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent

ANSI/BHMA Standard

A156.36 Certified Grade 1

Usage

Heavy Duty

ANSI Function

E0141

Deadbolt Type

Double Cylinder

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Corbin Russwin L4 Keyway

Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate

Backset

2-3/4"

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

Fire Rated - UL10C - Positive Pressure

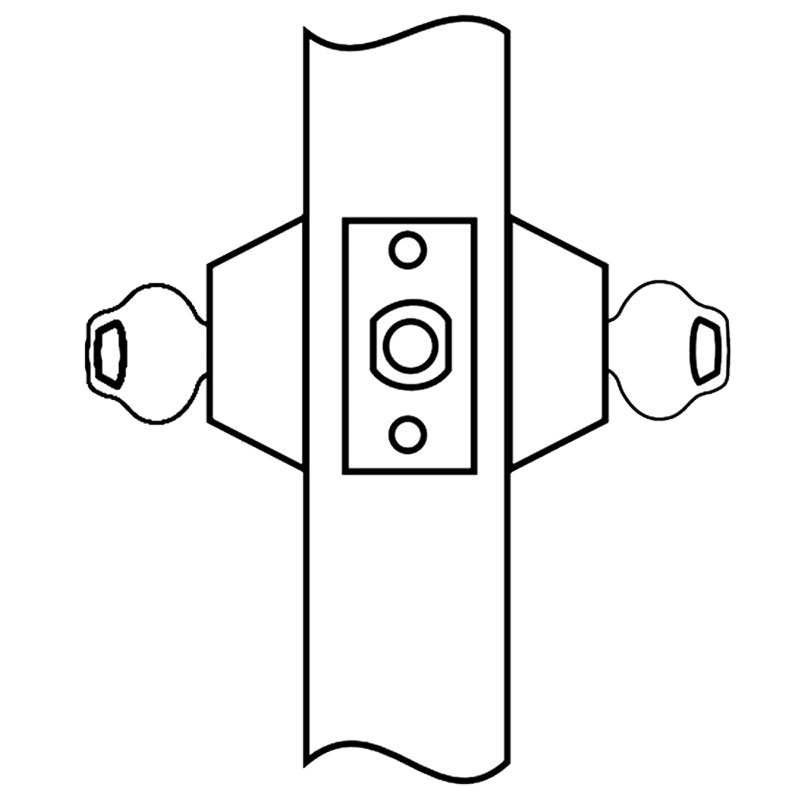

DL3212 Double Cylinder Deadbolt
