Command Access CDL Concealed Door Loop

Command Access CDL Concealed Door Loop

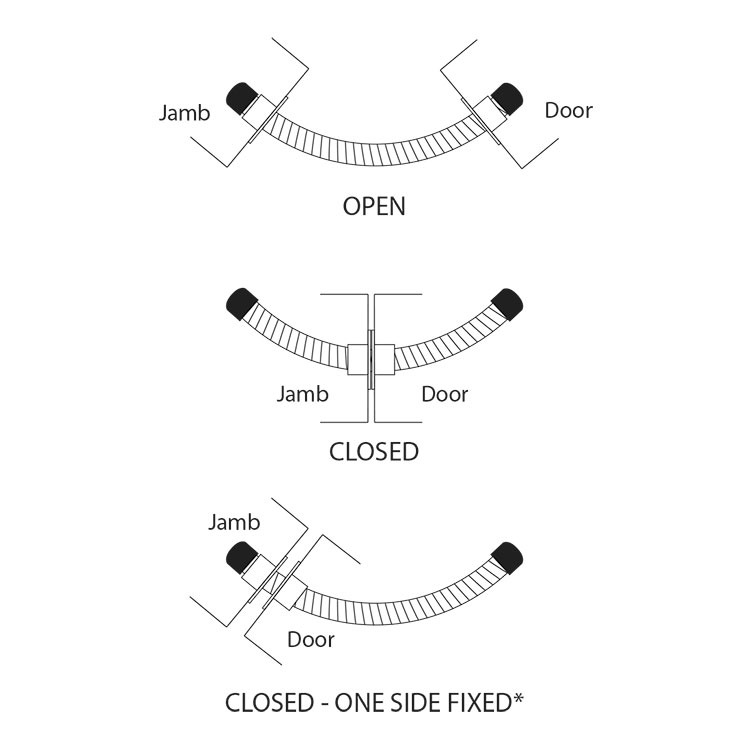

This patented Concealed Door Loop (CDL) is a low-cost method of transferring low-voltage power from the door frame to the locking device. Whereas typical door loops are surface mounted and remain constantly visible, the CDL slides into the door and/or frame completely concealing itself when the door is closed. Designed for Continuous and Butt hinge applications that are either full mortise, half mortise or half surface and have a standard throw. Commonly installed where ETH hinges are cost-prohibitive and surface door loops are not desired. The CDL’s aesthetic appeal will benefit retrofits and new installations alike.

• Continuous hinge applications
• Butt hinge applications
• Available in aluminum or black finishes
• Durable finish
• Easy Installation
• Variable mounting locations
• Special 1/4″ flexible armored conduit
• Supports up to 180° swing
• 3-Year Warranty

Models

• CDL-AL: 6” length with ALUM finish end caps
• CDL-BLK: 6” length with BLACK finish end caps
• CDL-AL-FX: 6” length with ALUM finish end caps, & 1 side fixed to create complete concealment in the opposing side
• CDL-BLK-FX: 6” length with BLACK finish end caps, & 1 side fixed to create complete concealment in the opposing side
