Product Overview

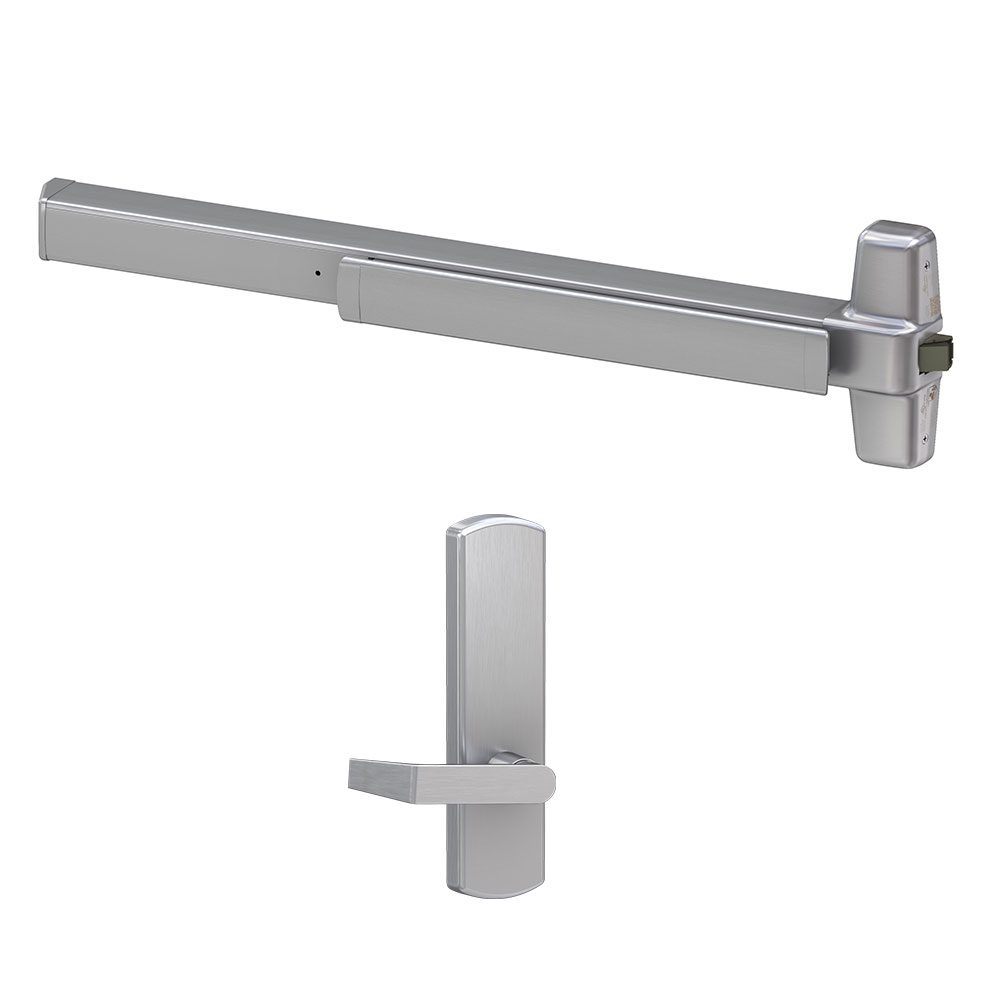

Von Duprin 98L-BE Grade 1 Rim Exit Device with Lever Trim, Wide Stile Pushpad, Passage Function, 06 Lever with Escutcheon, Field Reversible
High-performance, wide stile rim exit device with heavy-duty lever trim for high use and abuse applications
The 98 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings.
- The 98 Series features a smooth mechanism case
- Designed for high use in commercial and institutional applications

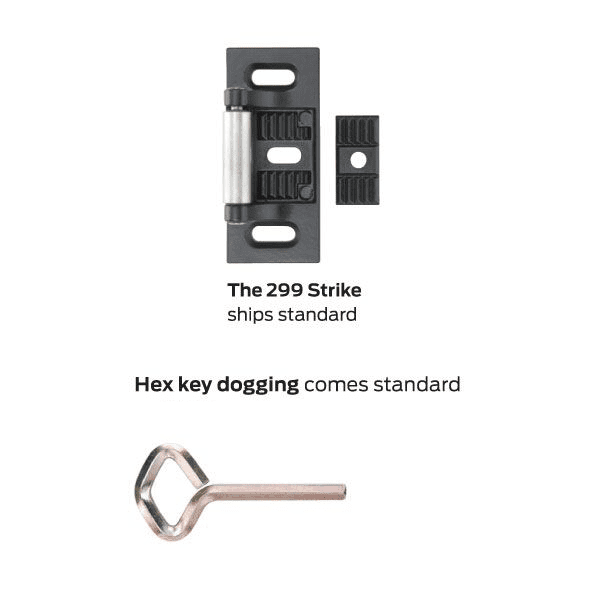

- 299 Roller Strike Standard
- Stock Sizes: 3′ and 4′ – Cut to size in field
996L-BE Blank Escutcheon Lever Trim
- ANSI Function: 14 - Lever always operable (no cylinder)
- Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″
- Projection: 2-7/8″
- #06 lever style furnished standard
- Field reversible - ships as RHR
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel |
| Length |
3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors) |
| Stile Type |
Wide (Standard) |
| Trim |
996L-BE (Passage - Lever Always Operable, No Cylinder) |
| ANSI Function |
F14 |
| Hand |
Device Non-Handed - Lever Ships as RHR (Field Reversible) |
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
| Usage |
Heavy Duty |
| Fire-Rating |
98L-BE: Non-Fire-Rated – 98L-BE-F: UL Listed A or B label Fire-Rated (3 Hours) |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Latchbolt |
Deadlatching, 3/4" throw |
| Strike |
299 roller strike standard, 299F strike with fire-rated device |
| Fasteners |
Includes screws for metal and wood doors |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Center Case |
8" x 2-3/4" x 2-3/8" |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Door Applications |
1-3/4″ Thick Doors |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
