Product Overview

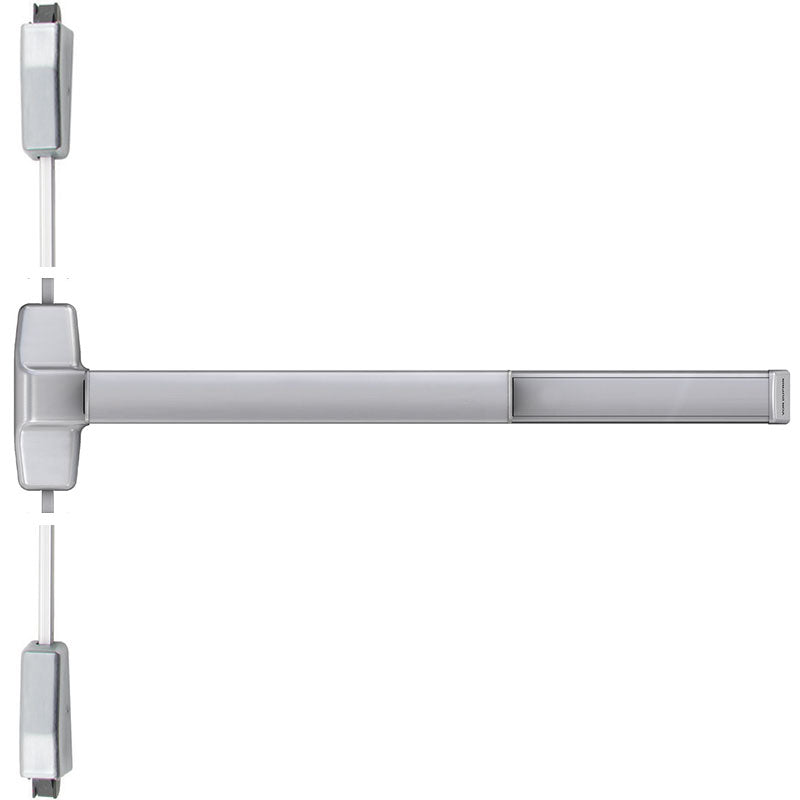

Von Duprin 7827EO-F Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, Fire-Rated, 84″ Door Height, Exit Only, Less Trim
Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.
7827-F Fire exit surface mounted vertical rod device are certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware. Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors. Rod and latch guards can be used on hollow metal or tin clad composite fire doors.
- EO = Exit Only, ANSI Function 01 (78 Series Outside Trim Sold Separately)
- Standard Sizes: 3′ x 7′ (2' 4" to 3' door width), 4′ x 7′ (2' 10" to 4' door width)
- Extension rod available for door up to 10’0″ (see part # 051810)
- ANSI/BHMA Certified, Grade-1
- UL listed for panic exit hardware and fire exit hardware
| Brand | |
|---|---|
| Finishes |
643e Aged Bronze, US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel, US28 (628) Anodized Aluminum, US26 (625) Bright Chrome, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass, US19 (315) Flat Black, 313 Duranodic Dark Bronze, US15 (619) Satin Nickel |
| Device Type |
Surface Rod Device |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3 2014, Grade 1 Certified |
| Usage |
Heavy Duty |
| Fire-Rating |
UL/cUL Listed for use on fire doors up to 3 hours |
| Vertical Rods |
Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (top extension rod available) |
| Hand |
Field Reversible |
| Latchbolt |
Deadlocking anti-friction top & bottom bolt, 5/8" throw |
| Strikes |
299F Top Strike, 304L Bottom Strike |
| Dogging Feature |
None |
| Stile Type |
Wide (Standard) |
| Center Case |
7-7/8" x 2-3/4" x 2-3/8" |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Fasteners |
Includes screws for metal and wood doors |
| Door Applications |
1-3/4″ Thick Doors |
| Warranty |
3 Year |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
