Trudoor

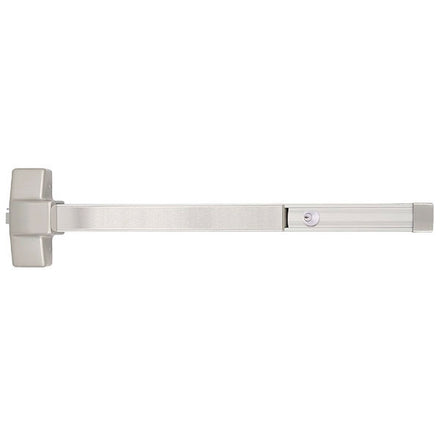

Trudoor TDE-CD-1000R-EO Heavy-Duty Panic Rim Exit Device with Cylinder Dogging Kit, Exit Only

$382.60
Usually Ships:  Same Day
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • Includes cylinder dogging kit (cylinder included)
  • ANSI function 01, exit only (trim sold separately)

Available Options:

Clear

Product Overview

Trudoor TDE-CD-1000R Heavy-Duty Grade-1 Rim Exit Device, Cylinder Dogging Kit, Exit Only

TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • Exit Only (Trudoor Exit Device Trim sold separately)
  • Includes Design Hardware CD-1000 cylinder dogging kit (Field Installation Required)
  • Cylinder dogging allows the push bar to be locked down using a key so the exit device can operate in push/pull mode to extend the life of the device

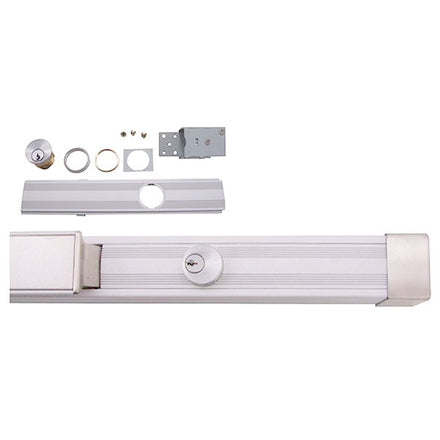

  • Included Parts: Exit Device, New Slide Cover, Cylinder Dogging Assembly, Mortise Cylinder (Schlage C Keyway), Cylinder Collar, Back Plate & Cylinder Retaining Ring
  • Designed for medium to heavy use
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate
  • Steel chassis, center case cover, push pad, and end cap
  • Deadlocking latchbolt with 5/8” projection
  • Non-handed for easy installation
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate
  • Device widths: 3FT (33" actual device width), 4FT (42" actual device width)
Brand

Finishes

US32D (630) Satin Stainless Steel

Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")

ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards

Usage

Heavy Duty

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

Fire-Rating

Non Fire-Rated

Trim

None - Exit Only (Outside Trim Sold Separately)

Latchbolt

Deadlocking latchbolt with 5/8″ projection

Dogging Feature

Cylinder Dogging (Mortise Cylinder Included)

Cylinder

1 1/8″ Mortise cylinder with std. cam (included) – 6 Pin Brass, C Kwy, with 2 Keys

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Handing

Non Handed – Completely Reversible

Stile Type

Wide (Standard)

Minimum Stile Width

4-1/2"

Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick

Mechanism Case

2-3/16″ Height x 2-3/16″ Wide

Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)

Warranty

Limited Lifetime Warranty
