Trudoor TD-TH6 Saddle Threshold – 6″ Wide x 1/2″ High

$42.71
Usually Ships:  Same Day
  • 6″ Wide x 1/2″ High
  • Barrier-Free, ADA Compliant
  • Fire-Rated up to 3 Hours

Available Options:

Clear

Product Overview

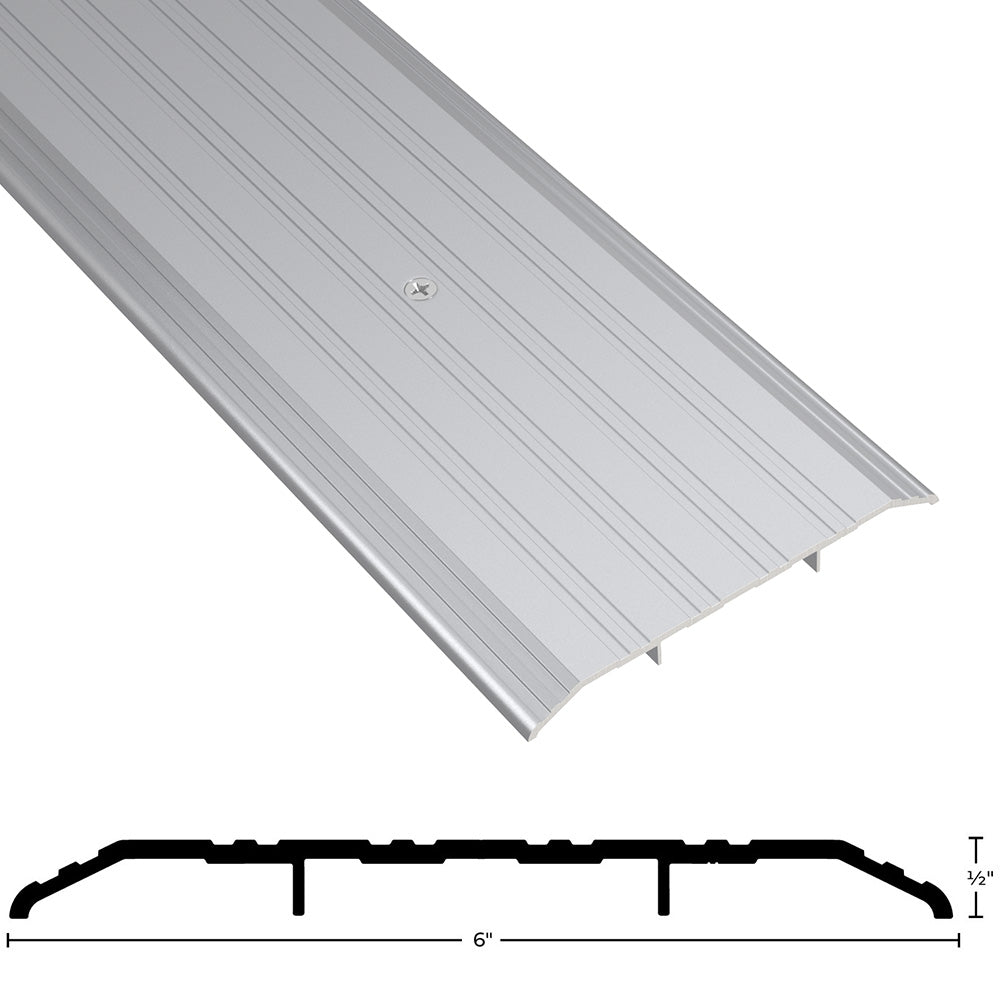

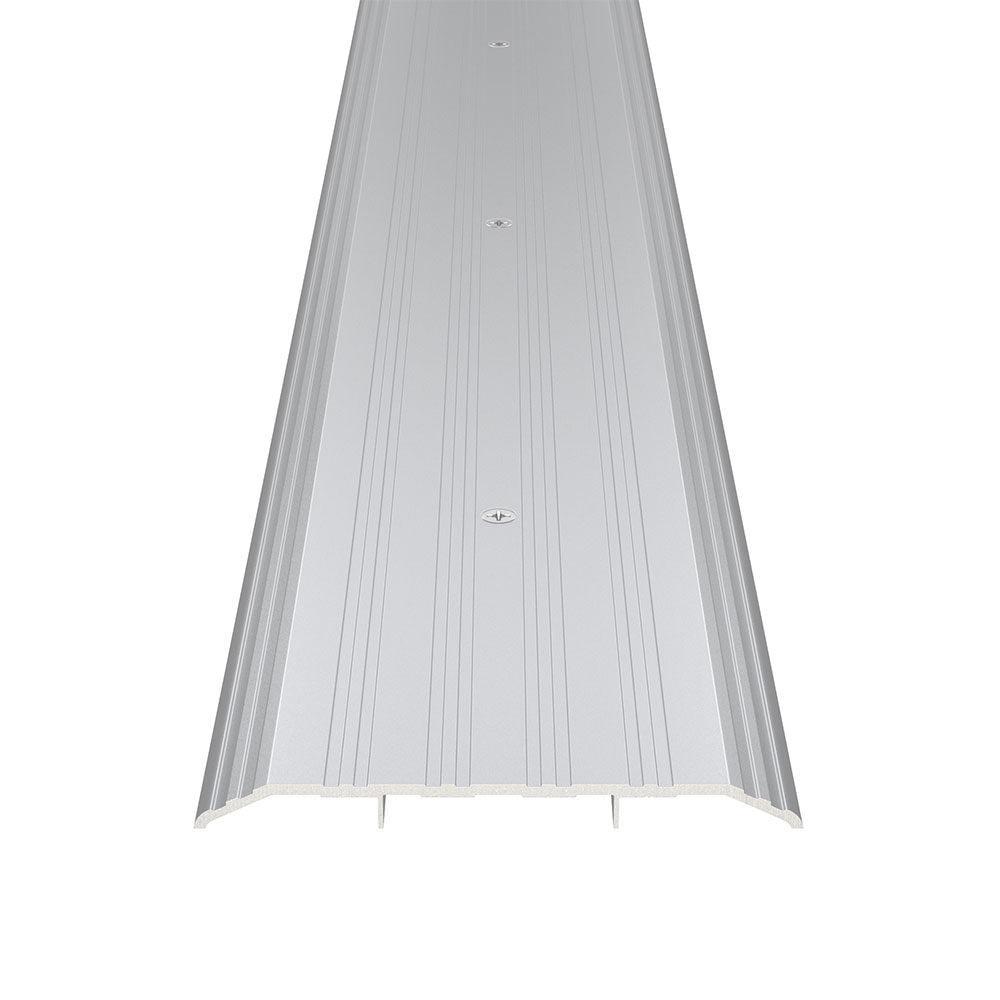

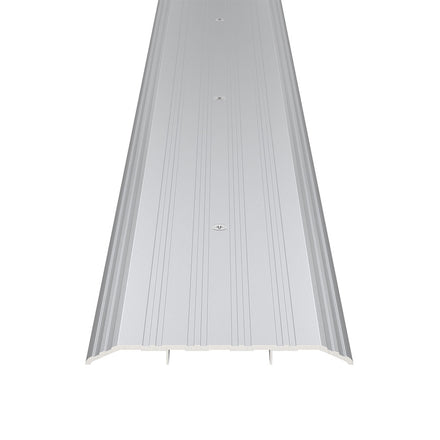

Trudoor TD-TH6A Commercial Fluted Saddle Threshold, 6″ W x 1/2″H, Mill Finish Aluminum

Saddle thresholds are symmetrically shaped and designed to seal the area under a door while creating a more finished look for commercial applications.

  • ADA accessible
  • Made from thick, durable metal
  • Width: 6" (152.4 mm)
  • Height: 1/2" (12.7 mm)
  • Lengths: 36″, 48", and 72″

Ratings

  • Barrier-Free (ADA): Meets the requirements of ADAAG-2010 and ANSI A117.1-2009 – Overall height is no greater than 1/2″
  • Fire Rated: UL10B and UL10C Positive Pressure

trudoor-certs

Cross-reference: Air Louvers WT-S426, Cal-Royal CR2726, Columbia 279, Hager 415S, NGP 426E, Pemko 172, Reese S426, Zero 8665

Brand

Finishes

Mill Finish Aluminum

Length

36", 48", 72"

Width

6"

Height

1/2"

Fire-Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
