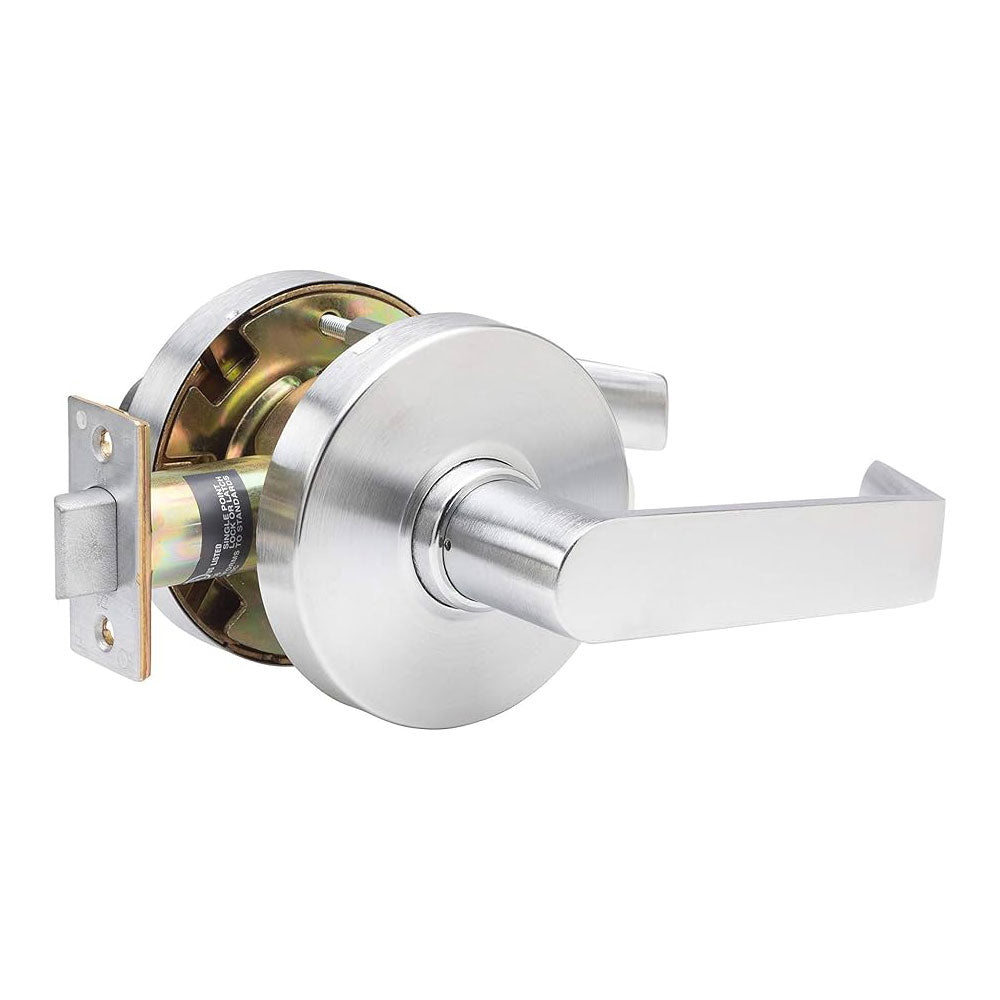

Trans Atlantic DL-LHV10 Heavy Duty Passage Lever

$114.84
Usually Ships:  3-5 Business Days
  • Heavy Duty, ANSI Grade 1
  • ANSI function F75
  • ADA compliant, 3-hour fire-rated

Product Overview

Trans Atlantic DL-LHV10 Grade 1 Passage Cylindrical Lock, 2-3/4" B.S.

The DL-LHV series cylindrical leverset are designed for use on all heavy duty Grade 1 commercial applications. The DL-LHV series is also ADA compliant and features a free wheeling clutch mechanism option that ensures longevity and security. Solid zinc diecast.

ANSI Function F75 – Latch bolt by levers at all times.

  • Door Thickness: 1 3/4” - 2”
  • Backset UL Listed: 2 3/4” - face 1 1/8”- 2 1/4”
  • UL listed ANSI A156.2 Grade 1
  • Latch: 5/8" projection stainless steel 3 hour UL
  • Bore: 2 1/8” hole retrofits all cylindrical locksets
  • Strike: ANSI 1 1/4” - 4 7/8” strike
  • Non-handed and reversible
Brand

Finishes

US26D (626) Satin Chrome

ANSI/BHMA Standard

Meets ANSI/BHMA A156.2, Series 4000, Grade 1

Usage

Heavy Duty

Lock Function

Passage

Backset

2-3/4"

Latch

5/8" throw - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Fire-Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
