Trans Atlantic

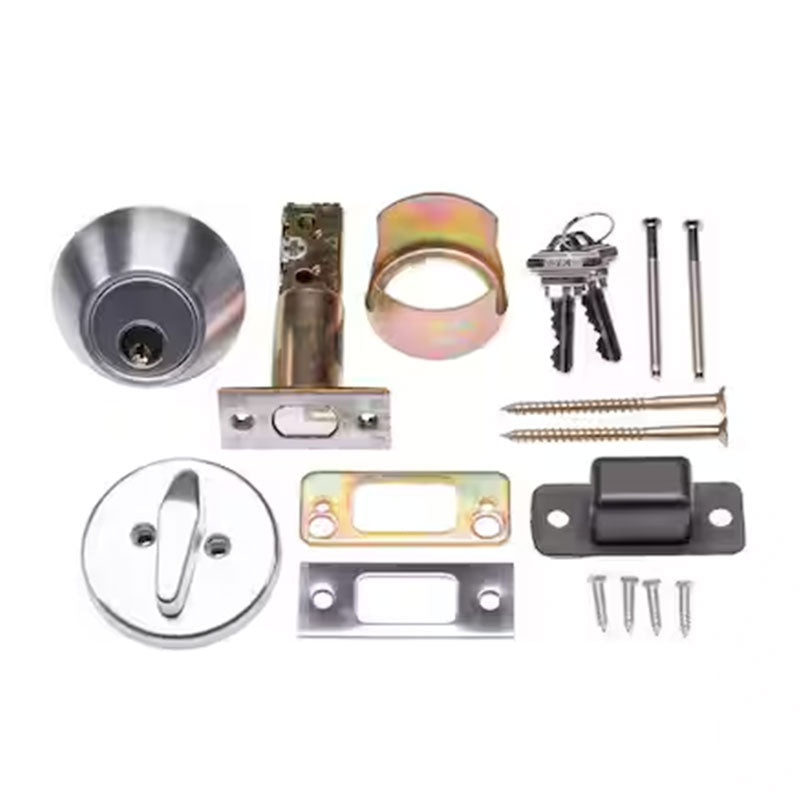

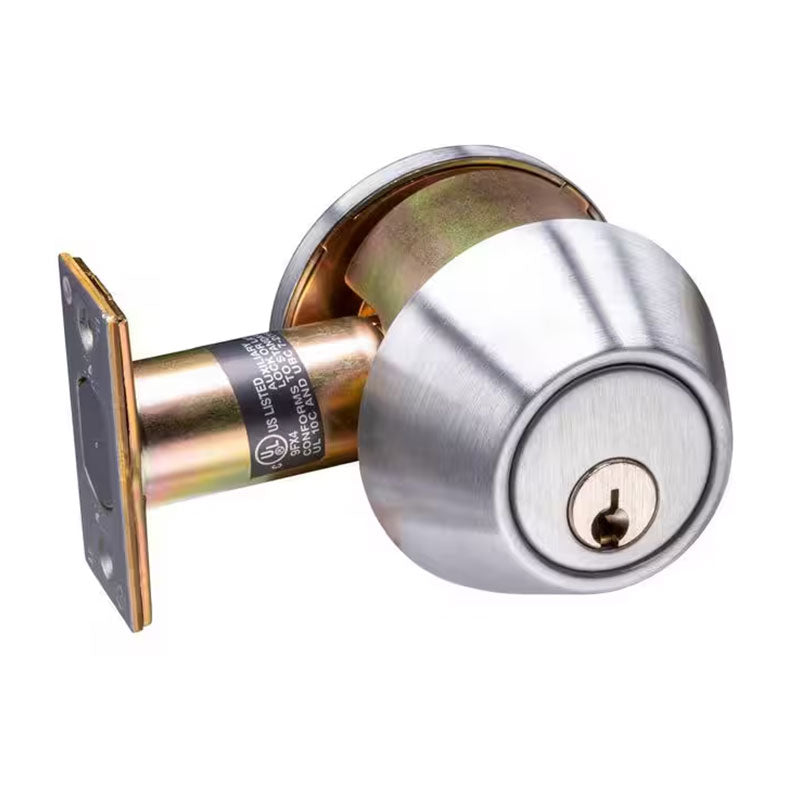

Trans Atlantic DL-DB751 Single Cylinder Deadbolt

$50.54
Usually Ships:  2-3 Business Days
  • Meets ANSI A156.2 Grade 2 standards
  • Single cylinder x inside turn
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

Trans Atlantic DL-DB751 Single Cylinder Deadbolt, Adjustable 2-3/8" to 2-3/4" Backset, Grade-2

DL-DB700 Series Grade 2 Deadbolt. Suitable for heavy duty as well as light duty applications

ANSI Function E1151: Lock or unlock by key from outside, by thumb turn from inside

  • Door Thickness: 1 3/4” – 2”
  • Backset: UL adjustable 2 3/8” – 2 3/4"
  • Full 1" Throw Deadbolts
  • Cylinder: Schlage “C” keyway
  • Strike: TA-019 1 1/8” – 2 3/4” strike
  • Non-handed and reversible
Brand

Finishes

622 Matte Black, US26D (626) Satin Chrome

Deadbolt Type

Single Cylinder

ANSI Function

E1151

ANSI Grade

Meets & exceeds ANSI – A156.2, Grade 2 standards

Usage

Medium Duty

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate

Backset

2-3/8" to 2-3/4" Adjustable

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Thickness

1-3/4"

Cylinder Format

Conventional
