Timely 47S 845 Prefinished Steel Pair Frame for 4-3/4" to 4-7/8" Wall, 8'0" Height, Prepped for (8) 4-1/2″ Hinges

$193.34
Usually Ships:  3-5 Business Days

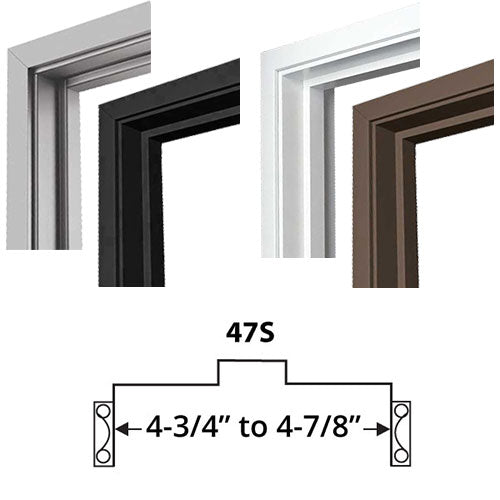

  • 47S Classic frame -  4-3/4" to 4-7/8" wall thickness
  • Consists of (2) hinge jambs and (1) header
  • Prepped for (8) 4-1/2" hinges, includes TA-8 casing trim

Available Options:

Clear

Product Overview

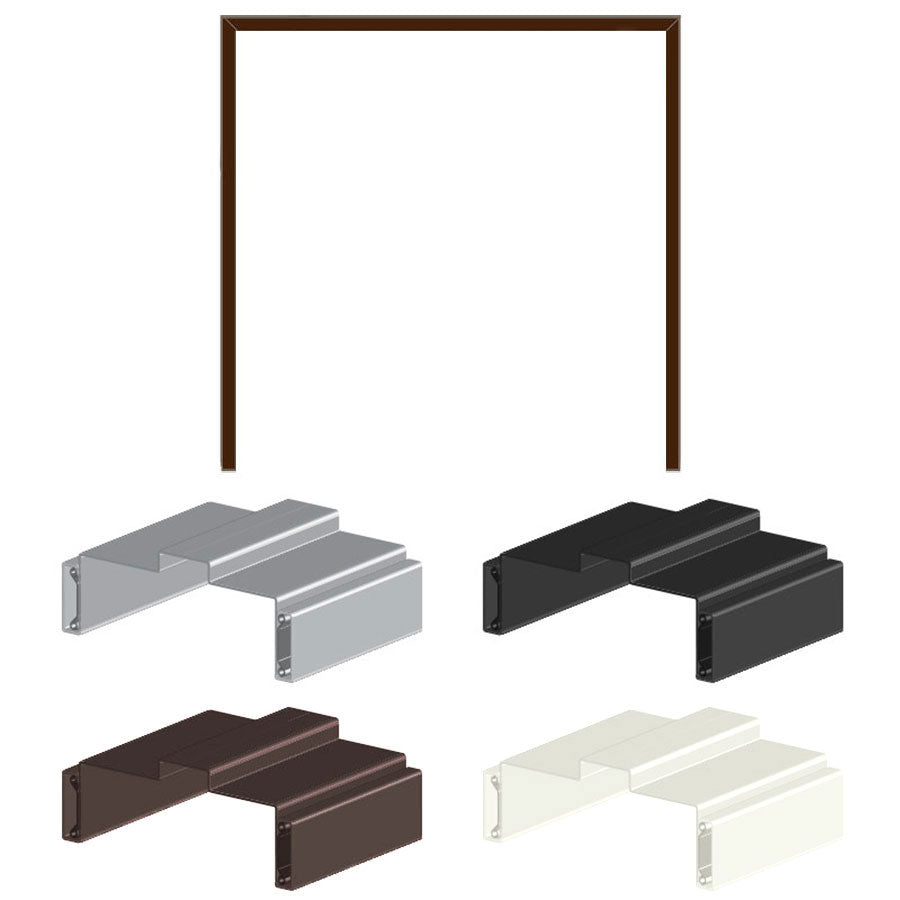

Timely 47S-845 Classic S-Series Pair Prefinished Steel Door Frame, 8'0" (96") Nominal Height, 4-3/4" to 4-7/8" Wall, Prepped for (8) 4-1/2" Hinges, TA-8 Steel Casing

Designed for commercial and institutional use in offices, hotels, schools, hospitals, and health care facilities. The classic frame is the most popular profile.

  • Door closer reinforcement plates and other Timely parts and accessories available

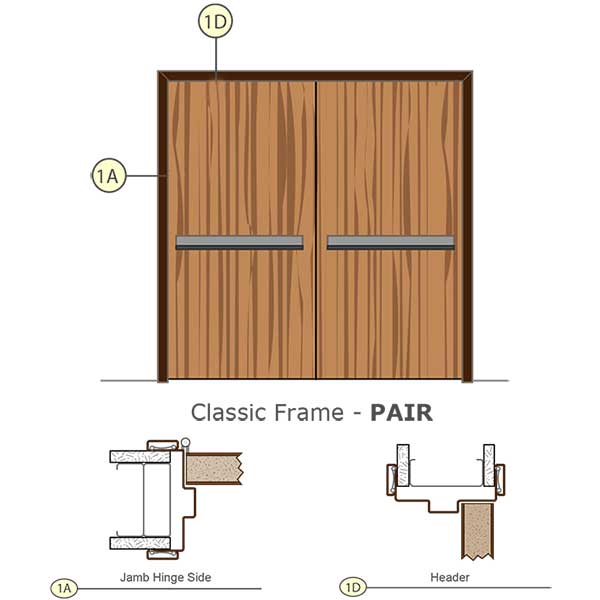

  • Pair frame consists of (2) hinge jambs (1-LH, 1-RH) and (1) header
  • Header furnished without reinforcements or hardware preps
  • 20 gauge prefinished GalXC™ hot-dipped galvanized steel
  • Ideal for most interior commercial drywall applications (wraps built stud wall)
  • Easy installation, #6 drywall screws recommended for anchoring (not included with frame)
  • Can accommodate doors weighing up to 250 lbs.
  • Extruded hinge screw holes, rolled threads - no welds to fail

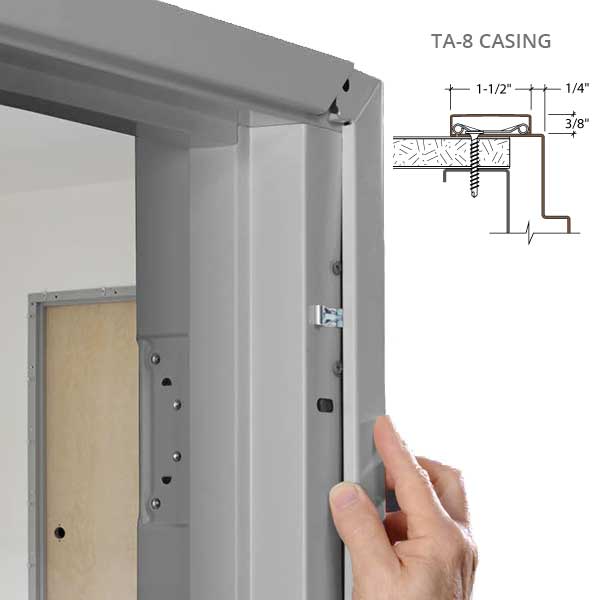

  • TA-8 steel casing included, snap-on spring clip system
  • Rough opening + 1-1/4" width, + 1 height (97")
  • Recommended for interior applications only
  • Optional: TA-40 reversible flush bolt strike emboss (includes strike - finish to match frame)
  • Optional Fire Label: WHI / ITS up to 90-Minute Fire-Rating (Mylar Label) – meets U-B-C-7-2-97, UL 10 C,UL 1784 Smoke Rating & CBC7-2 1998 PART 1 & 2 – Fire Rated Assemblies must be in accordance with NFPA 80

Includes: Header, 2 Hinge Jambs, TA-8 Casing both sides, 2 Silencers, 4 TA-6 Corners

Frame Order Sizes: 4’0″ x 8’0″, 5’0″ x 8’0″, 6’0″ x 8’0″, 4’0″ x 8’0″, 8’0″ x 8’0″

s-series-icons

Brand

Series

Classic S Series

Base Material

GalXC hot dipped galvanized steel, G-30 coating weight

Steel Gauge

20-gauge

Components

(2) Hinge jambs (1-LH, 1-RH), (1) header, and casing trim

Finish

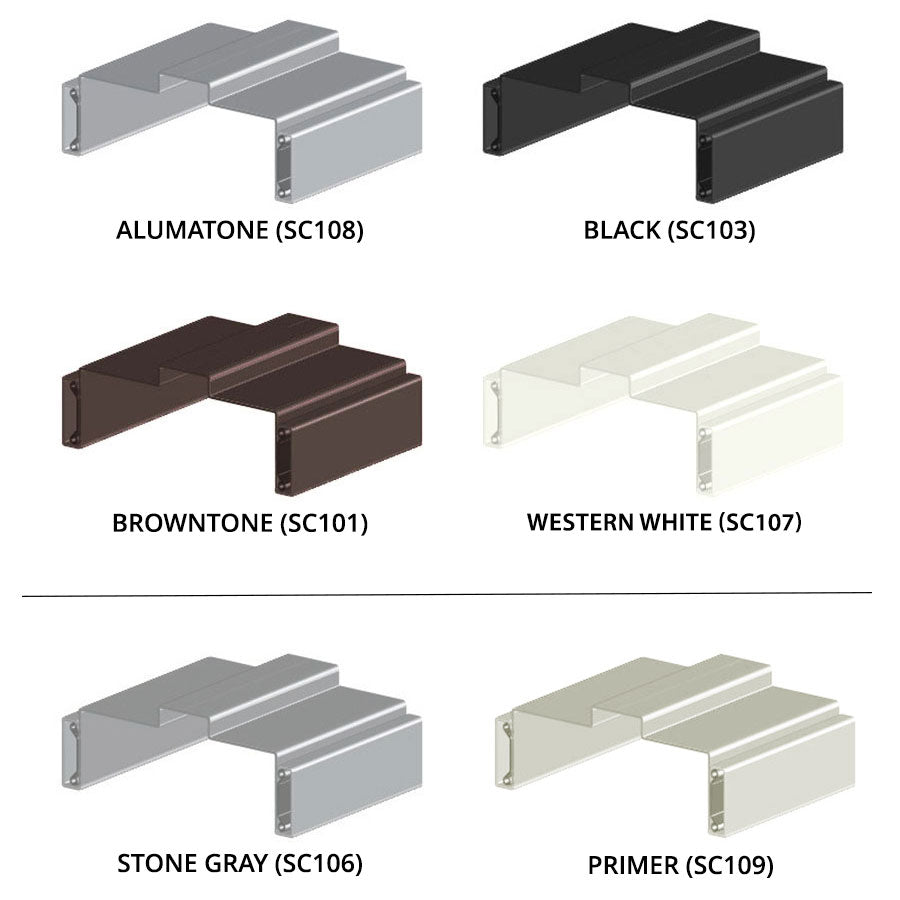

Alumatone, Black, Browntone, Western White

Width

6'0", 8'0"

Height

8'0"

Hinge Prep

845 - Eight (8) 4-1/2″ Hinges

Hinge Locations

Timely

Frame Profile / Wall Thickness

47 - 4-3/4" to 4-7/8"

Rabbets

Unequal double rabbets

Casing

TA-8 steel casing

Anchors

#6 drywall screws recommended (not included with frame). Anchors every 11" around full perimeter of frame on both sides - Applied casing conceals all fasteners.

Door Thickness

1-3/4"

Door Weight

up to 250 lbs.

Fire-Rating

Optional: WHI / ITS up to 90-Minute Fire-Rating (Mylar Label) – meets U-B-C-7-2-97, UL 10 C,UL 1784 Smoke Rating & CBC7-2 1998 PART 1 & 2

Buy American Act Compliance

Meets Buy American Act - Made in USA
