Select SL38 HD300 Concealed Geared Continuous Hinge for 1" to 1-3/8" Thick Doors

$108.88
Usually Ships:  2-3 Business Days
  • Flush mounted (no door inset)
  • For 1" to 1-3/8" thick doors
  • Supports weights up to 300lbs

Available Options:

Clear

Product Overview

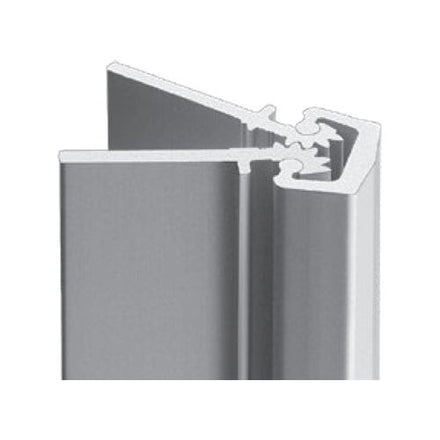

Concealed edge mount architectural grade aluminum hinges. No mortise required. For new construction or renovation/retrofit. Hinge failure is the most common cause of entrance failure. The revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure problems.

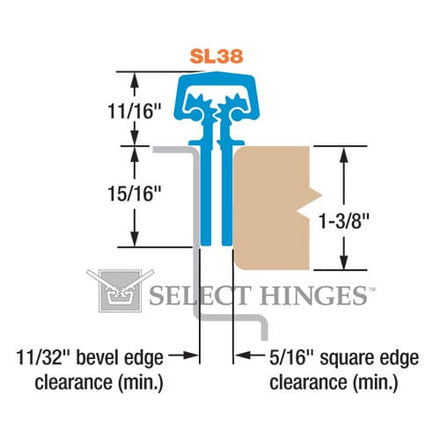

For 1" to 1-3/8" doors. Flush mounted (no door inset).

  • Lifetime lubrication
  • Anodized after machining
  • Consistent templating

Brand

Finishes

Dark Bronze Anodized Aluminum, Clear Anodized Aluminum

Length

83" (for 7'0" door), 95" (for 8'0" door)

Material

Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.

Load / Frequency

For 1" to 1-3/8" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.). Heavy Duty 300 – For high-frequency doors up to 300 lb. without frame or door reinforcement.

Usage

Heavy Duty

Continuous Hinge Type

Full Mortise (Concealed)

Buy American Act Compliance

Meets Buy American Act - Made in USA
