Schlage

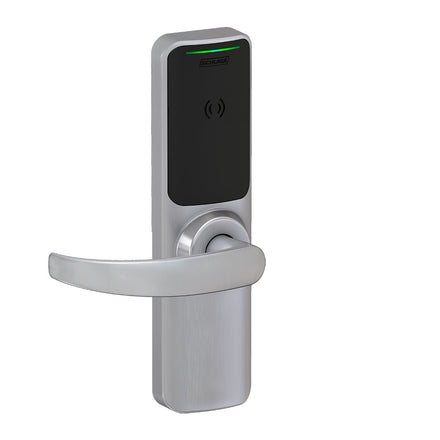

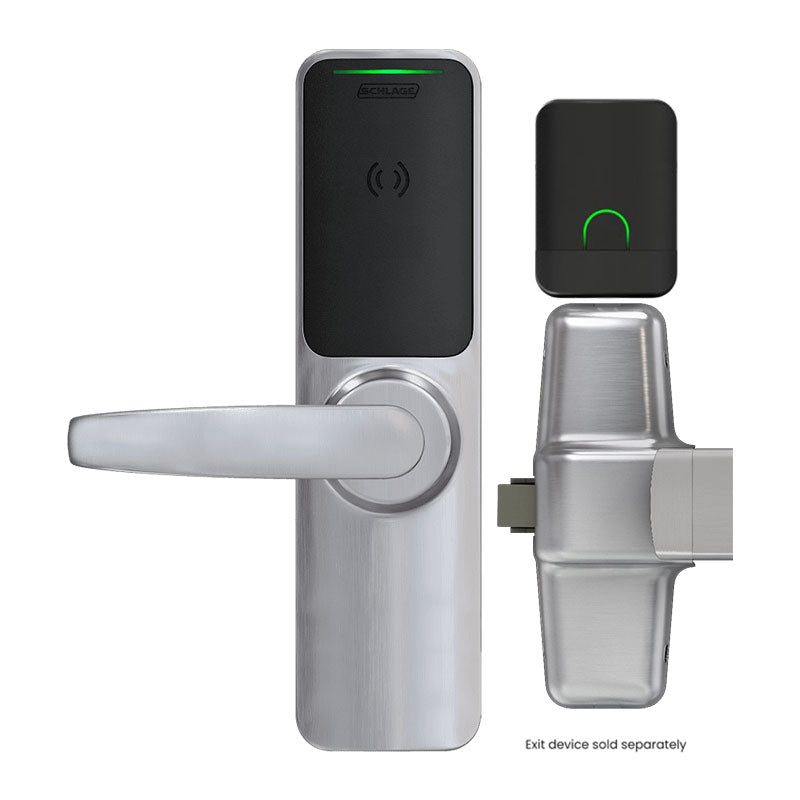

Schlage XE360EW99R OFISM Wireless Exit Device Trim for Von Duprin 98/99 Rim Device

$1,057.79
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.3-2020 Grade 1
  • For use with Von Duprin 98/99 rim devices (device sold separately)
  • Smart Bluetooth and NFC mobile reader, with key override

Available Options:

Clear

Product Overview

Schlage Electronics XE360EW99R OFBSM Grade 1 Wireless Exit Trim, Smart Bluetooth and NFC Mobile Reader, Interior Pushbutton LED with Indicator, Von Duprin 98/99 or XP98/99 Rim, Neptune Lever, Field Reversible, Key Override

Building upon the innovation and reliability of Schlage electronic locks, the XE360 Series is the next generation of wireless locks from this trusted brand. The wireless exit trim suites flawlessly with the XE360 tubular and mortise chassis to ensure an aesthetically consistent property.

XE360 currently works within No-Tour or offline access control systems and supports the latest credential technologies.

The open architecture design of the XE360 allows it to be managed by Allegion software or be integrated into popular physical access control and Proptech systems through our PACS Alliance program. This enables customers to choose what best fits their requirements now and transition to another solution at any time.

  • Exit trim (wide stile) with interior LED indicator (I)
  • Functions like a Storeroom function lock
  • Credential support includes Schlage MIFARE®, Bluetooth® and NFC mobile1
  • Advanced encryption keeps data and communications safe
  • Wireless configuration from connected smartphones and tablets
  • No-Tour or offline system capability
  • Ready for the future with the innovative FleX ModuleTM that allows for communication type, memory and encryption upgrades
  • Exceeds Grade 1 testing for exceptional quality and reliability
  • Open architecture – interoperable and simple for software alliances to integrate
  • Works seamlessly with other Schlage wireless locks, including Schlage Control2

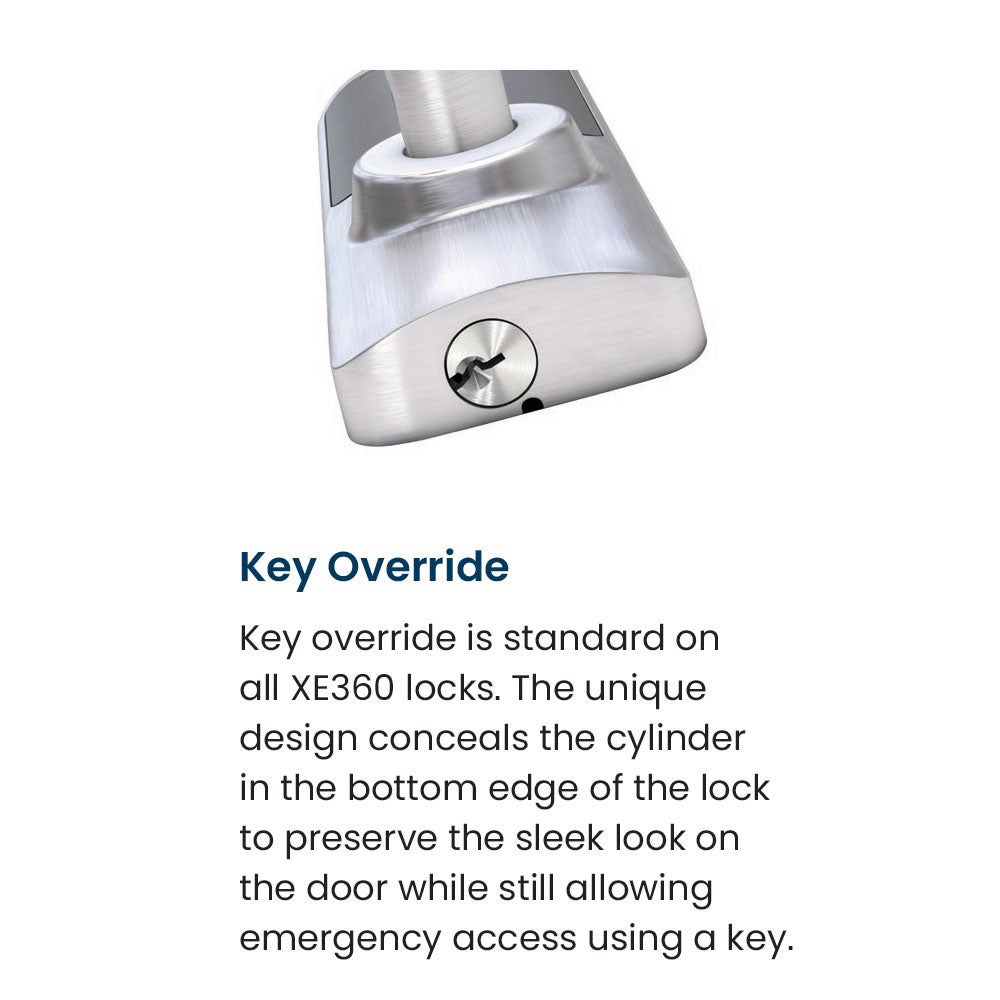

  • Uniquely concealed key override standard on all locks (Schlage C keyway)
  • Door thickness: 1-3/4"
  • Backset: Defined by exit device
  • Latchbolt: Defined by exit device
  • Strike: Defined by exit device
  • Stile width: Minimum 4 1/4"

Certifications

  • ANSI/BHMA A156.3-2020 Grade 1
  • ANSI/BHMA A156.25-2023 Locked Outdoor Type
  • ANSI/BHMA A156.5-2020
  • UL 294
  • ULC 60839
  • UL 10C 3-hour
  • CAN/ULC S104 3-hour
  • FCC Part 15
  • Industry Canada (IC)
  • Industry Canada (IC)-RSS210
  • ADA Compliant1
  • REACH
  • ROHS
  • TAA
Brand

Finishes

626 Satin Chrome, 622 Matte Black, 619 Satin Nickel

Lever Design

NEP (Neptune), BRW (Broadway), LAT (Latitude), LONE (Longitude-Extended)

ANSI/BHMA Standard

ANSI/BHMA A156.3-2020 Grade 1

Usage

Heavy Duty

Handing

Non Handed – Completely Reversible

Reader Type

Smart; Bluetooth and NFC mobile

Cylinder & Keys

Schlage Classic C keyway, Conventional 6-pin cylinder with two keys

Keyway

Schlage C Keyway

Battery Life

Up to two 2 years 4 AA batteries, included

Users

Up to 2000

Warranty

1 Year
