Schlage

Schlage ND70JD SPA (Sparta) FSIC Interchangeable Core Classroom Lever Lock

$526.68
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • Prepped for Interchangeable Core (FSIC Core Sold Separately)
  • ANSI Function F84, Classroom

Available Options:

Clear

Product Overview

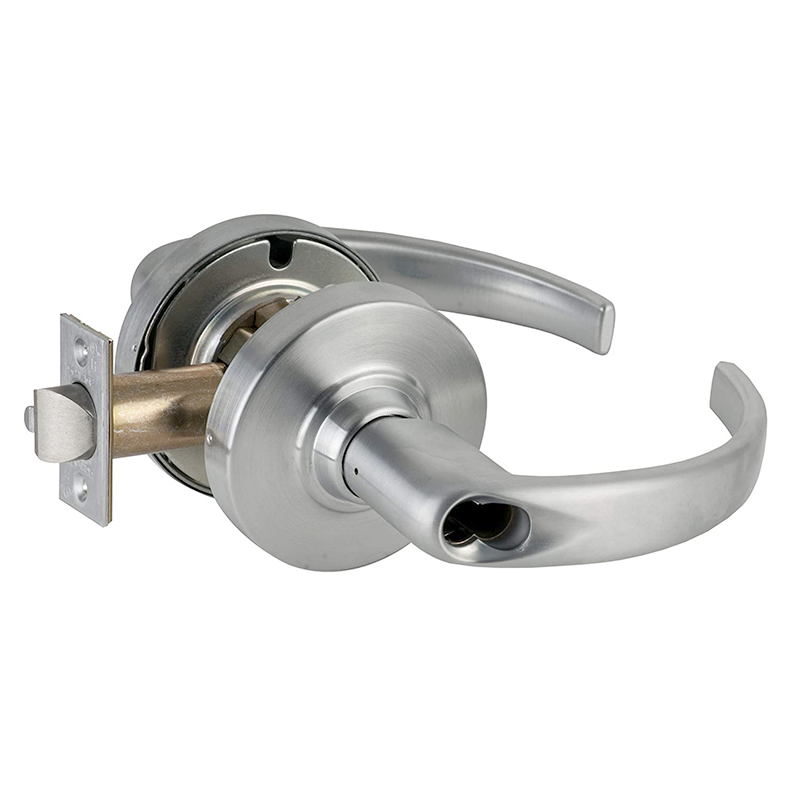

Schlage ND70JD SPA Grade-1 Cylindrical Lever Lock, Classroom Function, Sparta Lever, Less Full Size Interchangeable Core

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

ANSI Function F84 – Outside lever is locked and unlocked by key; inside lever is always unlocked; inside lever always free for immediate egress.

23-030 Full Size Interchangeable Core Sold Separately

Brand

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 612 Satin Bronze, 613 Oil Rubbed Bronze, 625 Bright Chrome, 643e Aged Bronze, 619 Satin Nickel, 626AM Satin Chrome Antimicrobial

Lock Function

Classroom

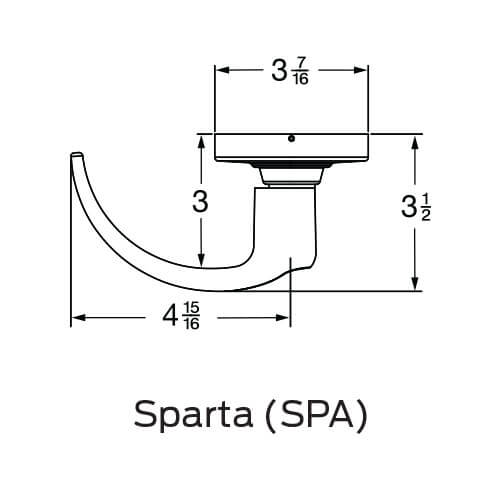

Lever Design

SPA (Sparta)

Cylinder

Less Interchangeable Core

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Backset

2-3/4"

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1

Usage

Heavy Duty

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front

Handing

Non-Handed

Door Thickness

1-3/4"
