Schlage

Schlage B581 Door Bolt with Trim, Inside Turn and IS-LOC (LOCKED/UNLOCKED) Indicator x Blank Plate

$107.60
Usually Ships:  20-30 Business Days
  • ANSI/BHMA A156.5 Grade 2 certified

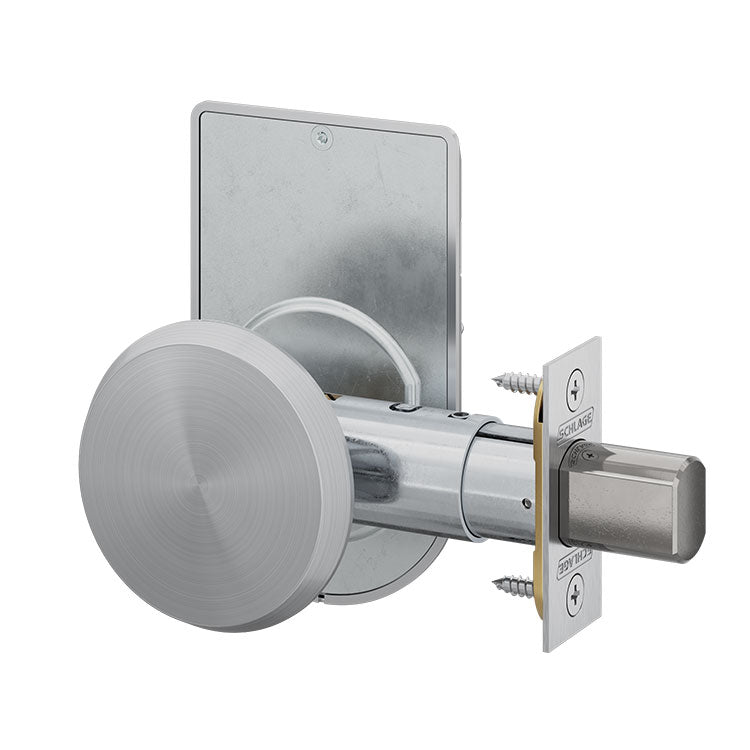

  • Inside turn x blank plate outside
  • Inside indicator displays “Locked” or “Unlocked”

Available Options:

Clear

Product Overview

Schlage B581 Grade 2 Door Bolt, Inside Turn and IS-LOC (LOCKED/UNLOCKED) Indicator x Blank Plate Outside, Adjustable 2-3/8" and 2-3/4" Backset

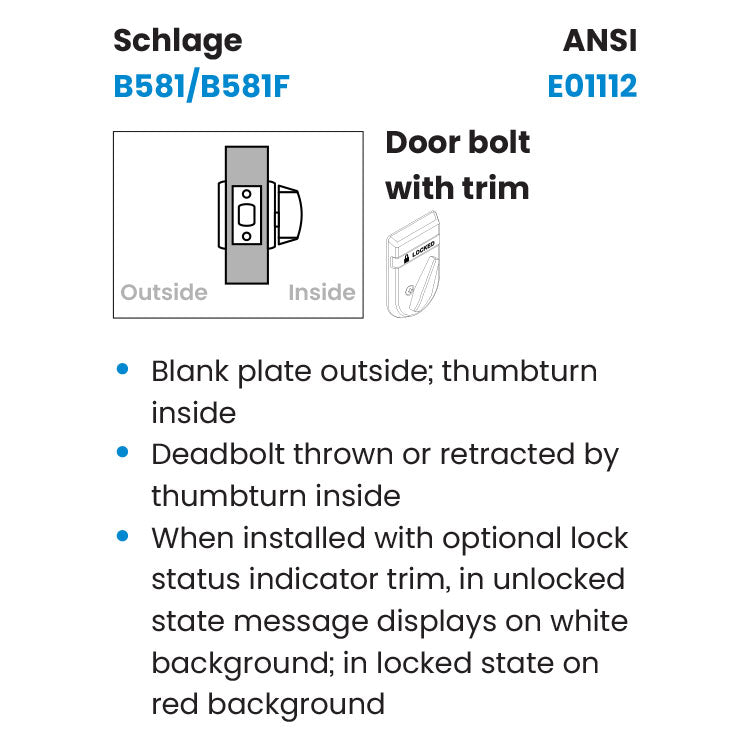

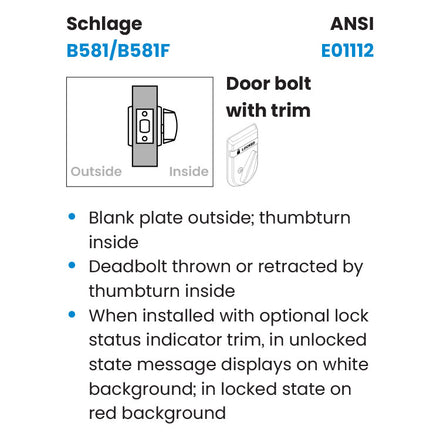

ANSI Function E01112: Blank plate outside; thumbturn inside • Deadbolt thrown or retracted by thumbturn inside • When installed with optional lock status indicator trim, in unlocked state message displays on white background; in locked state on red background

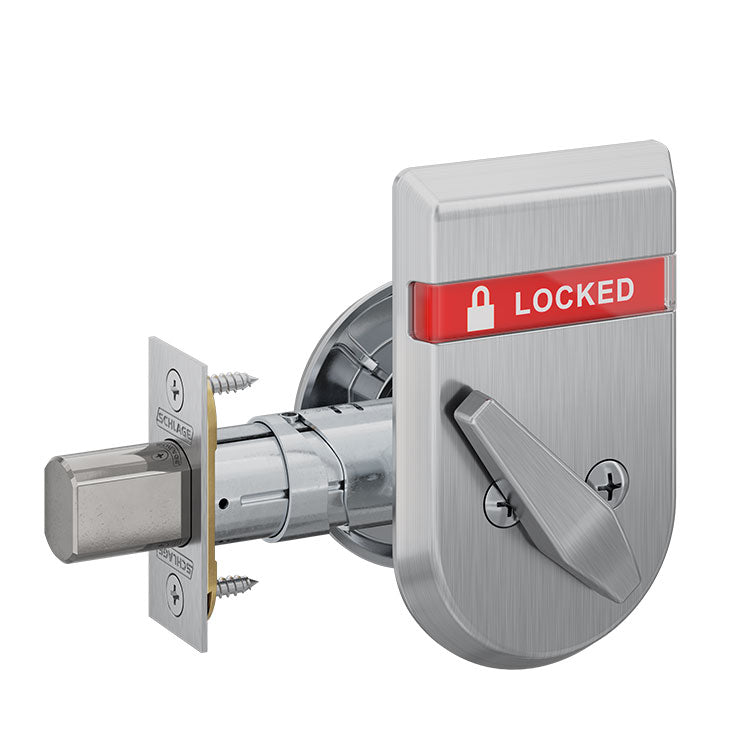

  • Inside indicator displays “Locked” or “Unlocked”
  • Window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .45” for maximum visibility
  • ADA compliant thumbturn
  • 2-3/8″ to 2-3/4″ Adjustable Backset (1-1/8″ x 2-1/4″ latch face)
  • Quick, easy installation – Adjustable backset locks into place
  • Anti-pry shield protects latch from attacks
  • Metal dust box provides deep anchoring and added strength
  • Primary or auxiliary locking for commercial buildings
  • High security locking for residential buildings
  • Can be suited with virtually all Schlage levers and knobs
  • Can be installed using the same standard door prep as any B Series lock
  • 3-year limited mechanical warranty
Brand

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 612 Satin Bronze, 613 Oil Rubbed Bronze, 625 Bright Chrome, 643e Aged Bronze, 619 Satin Nickel

Deadbolt Type

Indicator, Turn Inside x Blank Plate

ANSI Function

E01112

ANSI/BHMA Standard

ANSI A156.36, Grade 2

ANSI Grade

ANSI Grade 2

Usage

Medium Duty

Bolt

1" throw bolt, 1" x 2-1/4" square corner face plate

Backset

2-3/8" to 2-3/4" Adjustable

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

None

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Thickness

1-3/8" to 1-3/4"
