Schlage ALX50P LAT (Latitude) Entrance/Office Lever Lock

$212.36
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • ANSI Function F82 – Entrance/Office
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

Schlage ALX50P LAT Grade-2 Cylindrical Lever Lock, Entrance/Office Function, Latitude Lever

Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security, and functionality when and where you need it.

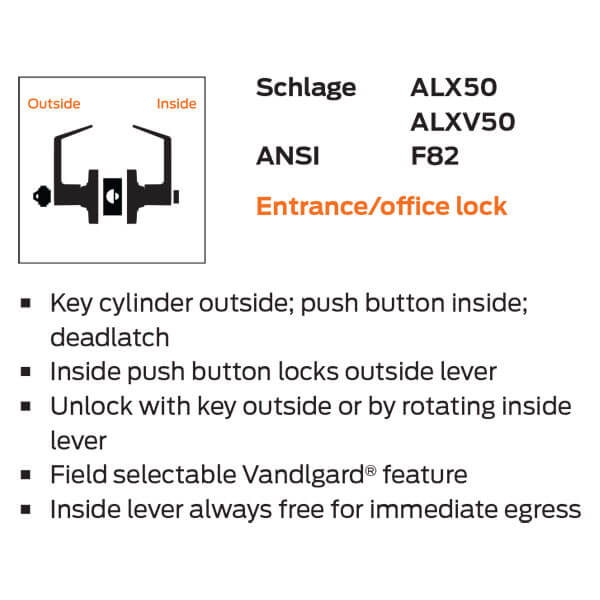

ANSI Function F82 – Key cylinder outside; push-button inside; deadlatch. Inside push button locks outside lever. Unlock with key outside or by rotating inside lever. Inside lever always free for immediate egress.

  • For medium to heavy-duty commercial door applications
  • Field selectable Vandlgard® feature - Converts to ALXV50
  • Accommodates 1-3/8" to 1-3/4" door thickness with minimal chassis adjustment
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Grade 1 compression springs

codes

Brand

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 612 Satin Bronze, 613 Oil Rubbed Bronze, 625 Bright Chrome, 643e Aged Bronze, 619 Satin Nickel, 626AM Satin Chrome Antimicrobial

Lock Function

Entry (Entrance), Office

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway, Schlage S123 Keyway

Lever Design

LAT (Latitude)

Backset

2-3/4"

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Usage

Medium Duty

ANSI/BHMA Standard

Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Warranty

10 Year Limited
