Product Overview

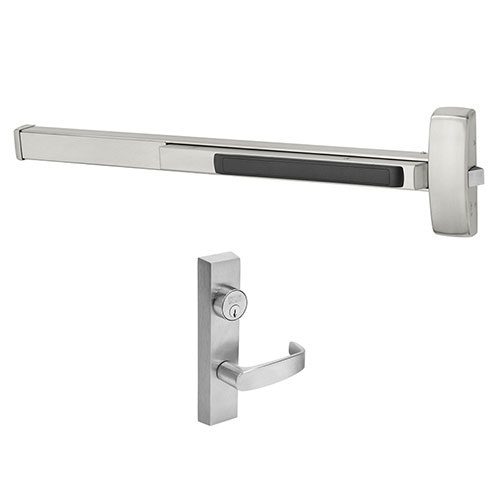

Sargent 12-8804 ETL Grade 1 Fire-Rated Rim Exit Bar, Wide Stile Pushpad, Night Latch Function Lever, L Lever Design
Designed for standard width stile applications on wood and metal doors, the 8800 Series features a rim bolt that combines quiet operation with solid security. Ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.
- ANSI Function 03 (Night Latch) – Key Retracts Latch
- 12- option = UL Listed Fire-Rated
- Architectural finish with black Lexan touchpad
- Designed for standard width stile applications on wood and metal doors
- UL305 (Panic) and UL10C (Fire) Listed
704-ETL Lever Trim
- ANSI Function: 03 – Key Retracts Latch
- L lever design, US26D Satin Chrome finish
- #34 rim cylinder is included (LA keyway)
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel Device w/ US26D (626) Satin Chrome Lever |
| Length |
F - 36" (for 33" to 36" Doors), G - 48" (for 43" to 48" Doors), J – 42" (for 37" to 42" Doors), E - 32" (24" to 32" Doors) |
| Includes Trim |
Yes |
| Lever Design |
L |
| Cylinder |
#34 rim cylinder is included |
| Keyway |
Sargent LA Keyway |
| ANSI Function |
03 |
| Stile Type |
Wide (Standard) |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3 - Grade 1 |
| Usage |
Heavy Duty |
| Fire-Rating |
UL/CUL listed - 3 Hour |
| Handing |
Handed (LHR - Left Hand Reverse or RHR - Right Hand Reverse) |
| Dogging Feature |
None |
| Latchbolt |
Stainless steel 3/4” throw |
| Strike |
649 Strike supplied standard |
| Door Applications |
1-3/4" Metal and Wood Doors |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
