PDQ

PDQ XGT182 Entry Lever Lock

$248.49
Usually Ships:  2-3 Business Days
  • Extra Heavy-Duty, ANSI/BHMA A156.2 Grade 1 certified
  • ANSI function: F82, entry
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

PDQ XGT182 Lever Lockset, Entry Function, Extra Heavy-Duty, Grade-1, 2-3/4" Backset, ASA Strike, Schlage C Keyway

The XGT Series Extra Heavy Duty Cylindrical Lock offers premium quality and durability. Cycle tested to over 3 times the BHMA standards, the XGT lock is built to withstand the toughest of applications. The 41-degree lever rotation provides reduced torque, lengthening the lifespan of the lock. This makes it a great choice for high-traffic areas where durability is most important. The XGT series is backed by a lifetime warranty and is assembled in Lancaster, PA.

ANSI Function F82 – Latchbolt operated by lever from either side or key in outside lever. Outside lever locked by push button on inside. Outside lever unlocked by key from outside, or rotating inside lever.

  • Built with a heavy-duty diecast chassis and a cast stainless steel lever spindle
  • 13-gauge steel anti-rotation plate enhances stability
  • Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard)
  • Lever torque tested to over 3,000 in-lbs (4 times the ANSI/BHMA Grade 1 standard)

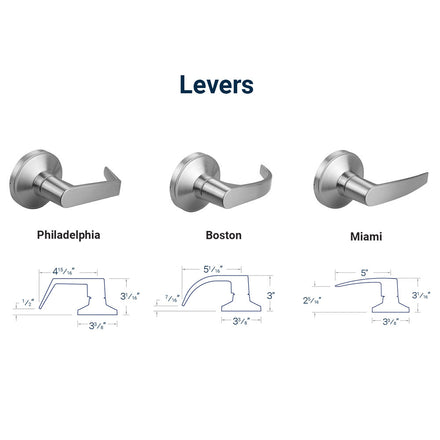

  • *Choose from three lever styles: Philadelphia (PHL), Boston (BSN), or Miami (MIA)
  • UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
  • Certified to ANSI/BHMA A156.2 Grade 1 standards
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

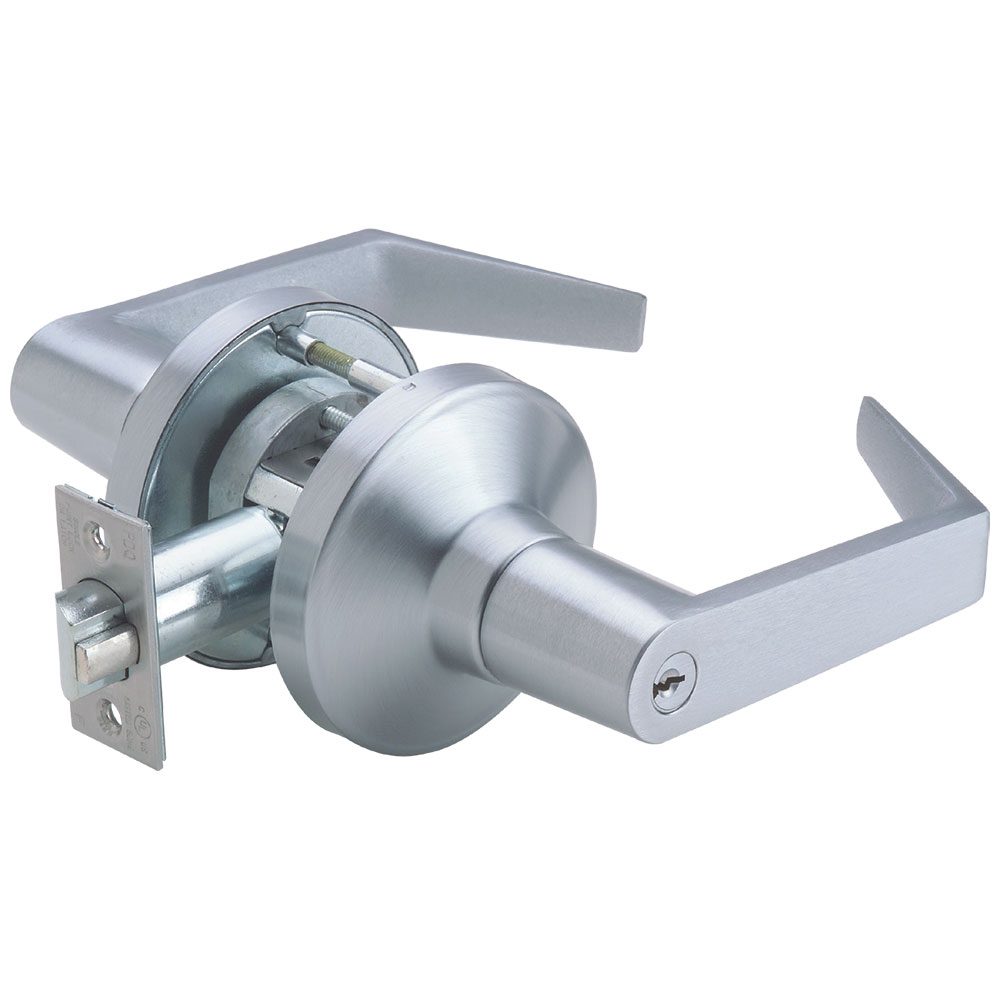

* PHL (Philadelphia) Lever Design Shown

sd_certs

Brand

Finishes

626 Satin Chrome

Lever Design

PHL (Philadelphia), BSN (Boston), MIA (Miami)

Rose Diameter

3-3/8” DIA Wrought

Usage

Heavy Duty

Lock Function

Entry (Entrance)

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.2, Grade 1

Fire-Rating

UL listed for 3 hrs, for single doors up to 4’0” x 8’0

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non Handed – Completely Reversible

Latch

9/16" throw – 1-1/8" x 2-1/4" face

Warranty

Limited Lifetime Warranty

Buy American Act Compliance

Meets BAA - Buy American Act
