PDQ

PDQ 5101 BC PA Door Closer

$129.60
Usually Ships:  2-3 Business Days
  • Heavy Duty, BHMA/ANSI Grade-1 certified
  • Fully Adjustable, sizes 1-6
  • Regular, top jamb, or parallel arm mount

Available Options:

Clear
Added to Cart

Product Overview

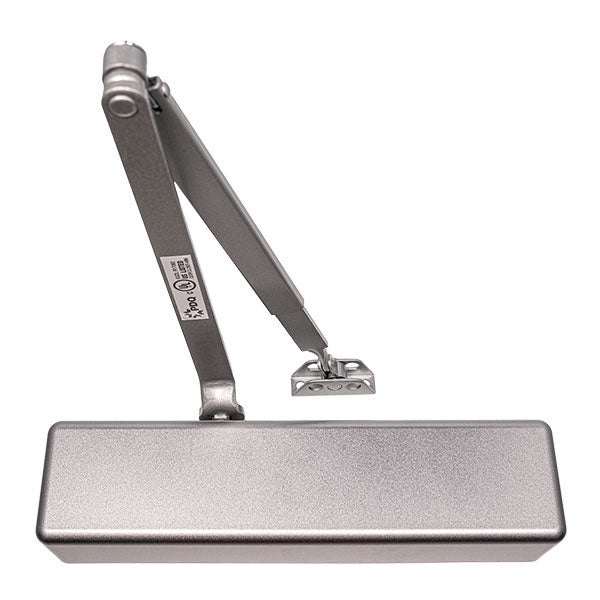

PDQ 5101 BC PA Heavy Duty Grade-1 Institutional Door Closer, Tri-Packed

The 5100 heavy-duty door closer from PDQ is the perfect solution for high-traffic areas in a commercial building. Built from a high-strength cast aluminum body, this door closer is designed for durability and performance.

  • Tri-packed for regular, top jamb and parallel arm installation
  • High-Strength Cast Aluminum Body
  • Forged steel main arm
  • Full plastic cover standard
  • UL listed 3-hour fire door
  • Certified to ANSI/BHMA A156.4 Grade 1
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
  • TAA compliant. Country of origin: KR

codes

Brand

Finishes

689 Aluminum (Powder Coated), 696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated), 693 Black (Powder Coated)

Templating (Hole Pattern)

3/4" x 11-1/8"

Usage

Heavy Duty

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.4 Grade 1

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL Listed

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Cover

Full Cover

Handing

Non-Handed

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Door Application

Hollow Metal, Wood or Aluminum

Warranty

25 Year Limited
