Norton

Norton PS7540ST Door Closer with Low Profile Push Side Slide Track

$485.02
Usually Ships:  10-15 Business Days
  • ANSI/BHMA A156.4, Grade 1 certified
  • Adjustable spring size 1 through 6
  • Includes low profile push side mount track arm

Available Options:

Clear

Product Overview

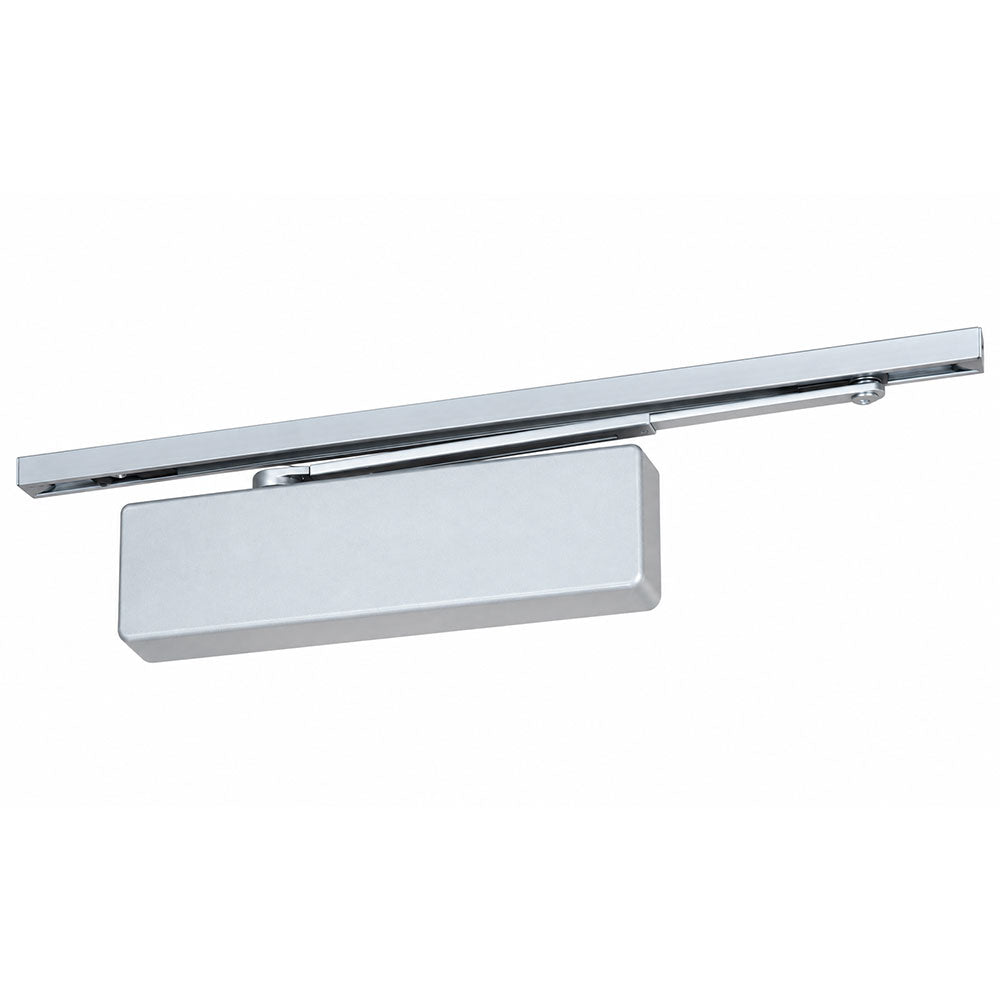

Norton PS7540ST Door Closer with Low Profile Push Side Slide Track

Provides designers with the smoothest lines available in a surface-mounted door closer. The single lever arm allows components to be located in a stack configuration to minimize projection and eliminate obtrusive arm angles The arm geometry reduces door closer power efficiency by approximately 25% from that of a regular arm.

Adjustable 85° to 110° (hold open and non-hold open) Track is supplied with a spring-buffered stop. An auxiliary stop, by others, is recommended.

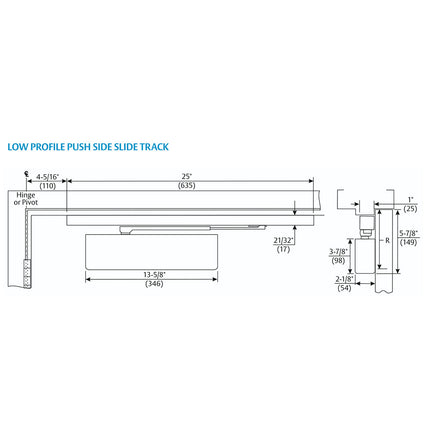

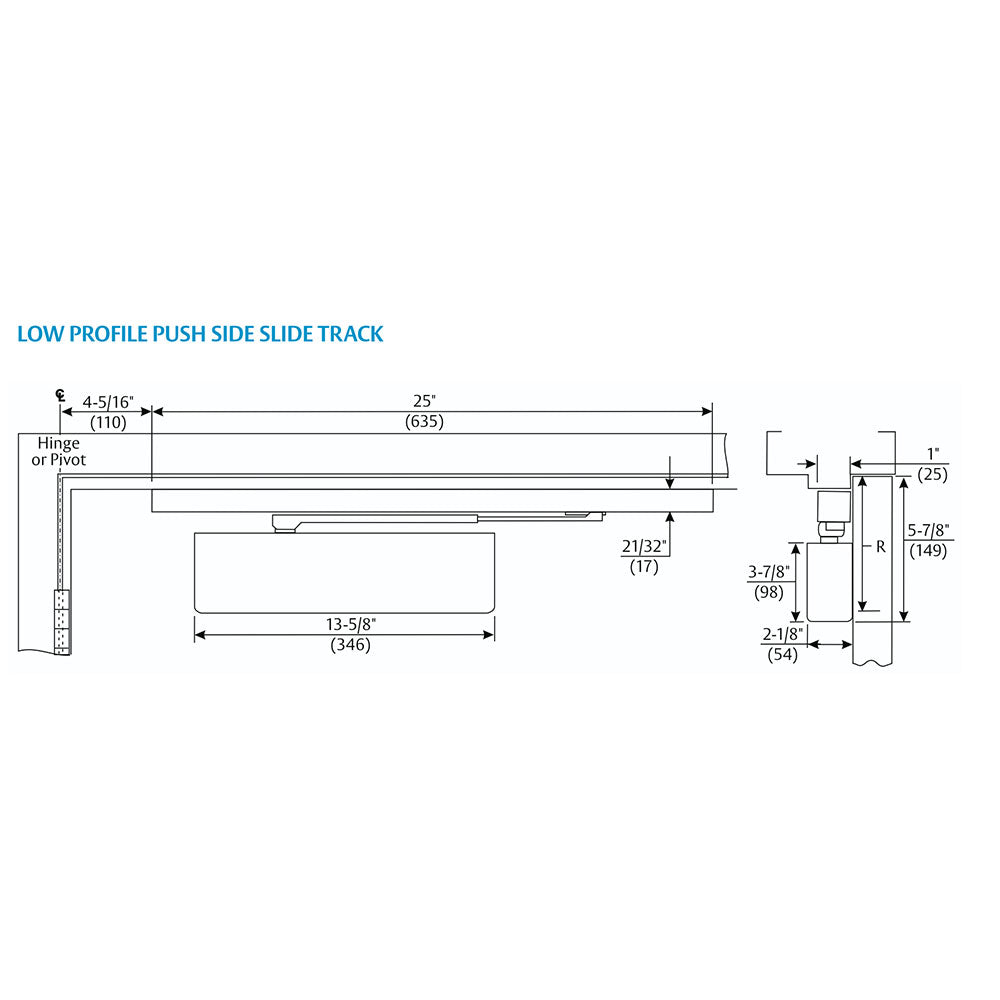

Mounting holes for closer body are spaced 2-3/8" (60mm) vertically x 6-3/4" (171mm) horizontally.

Features narrow, slim track

Certifications:

  • ANSI/BHMA A156.4, Grade 1
  • UL / cUL listed for use on fire-rated doors (non hold open model)
  • Complies with requirements for the Americans with Disabilities Act (A.D.A)
Brand

Finishes

689 Aluminum (Powder Coated), 690 Statuary Bronze (Powder Coated), BSP - Black Suede Powder Coat, WSP - White Suede Powder Coat, 696 Brass (Powder Coated), 691 Light Bronze (Powder Coated)

Templating (Hole Pattern)

2-3/8" x 6-3/4"

Usage

Heavy Duty

Mounting Options

Pull Side

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non-Handed

Certifications

Tested and certified under ANSI Standard A156.4 - Grade-1

Fire-Rating

UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)
