NGP (National Guard) R175 ADA Compliant Interlocking Ramp - 21" Wide x 1-3/4" High

$318.90
This item ships FREE! Usually Ships:  10-20 Business Days
  • 21″ Wide x 1-3/4″ High
  • Butts against the change in floor elevation
  • Barrier-Free, ADA Compliant, ICC/ANSI A117.1

Available Options:

Clear

Product Overview

National Guard Products (NGP) R175 1-3/4" H x 21" W ADA Compliant Aluminum Interlocking Ramp

Complies with the slope and run required by ADA and ICC/ANSI A117.1

  • BHMA Certified to ANSI/BHMA A156.21 1,000 Lb. Load Tested
  • Aluminum alloy 6063, T5 temper

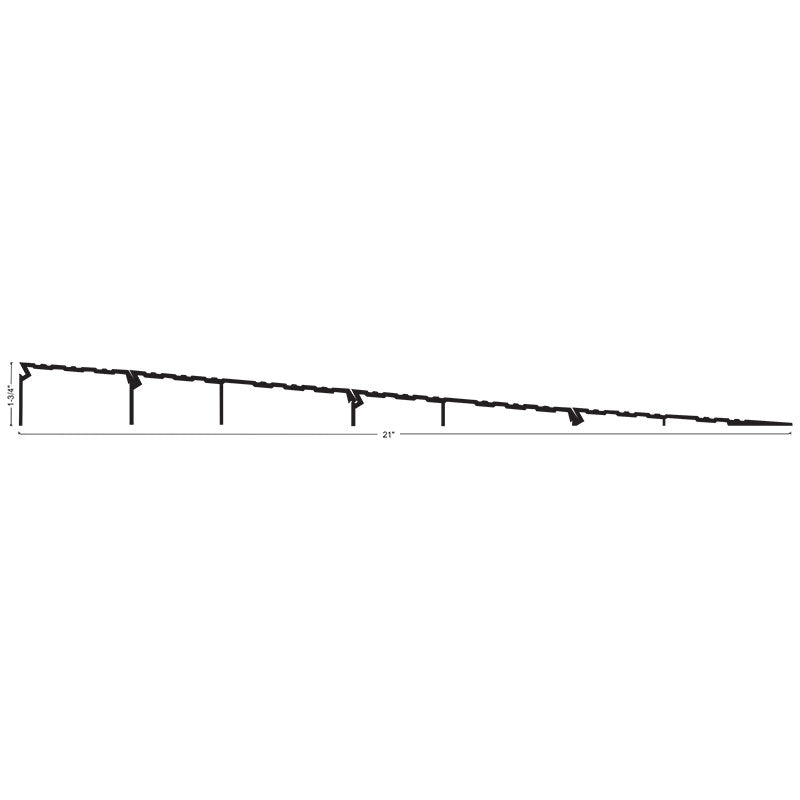

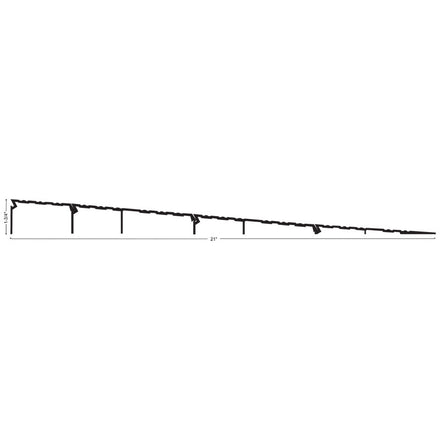

  • 21" wide x 1-3/4" tall
  • Typical wall thickness: .110"
  • Weight: 4.53 lbs./ft.
  • #10 FH zinc-plated wood screws included
  • Mill finish (optional slip-resistant SIA finish)
  • Return Closed Ends available

This product is fabricated to order and is not returnable or refundable.

Brand

Finishes

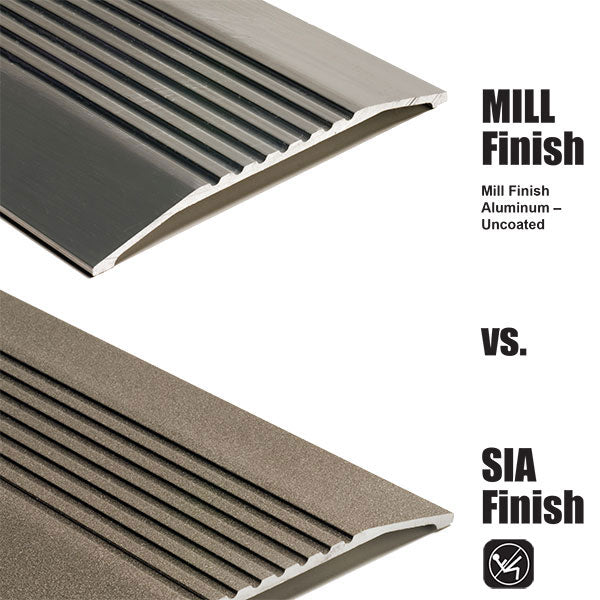

Mill Finish Aluminum, SIA - “Slick It Ain't" Abrasive Slip Resistant Non-Skid Finish

Length

36", 96", 48", 72"

Width

21"

Height

1-3/4"

Fire-Rating

Fire rated-UL10c

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Buy American Act Compliance

Meets Buy American Act - Made in USA
