NGP (National Guard)

NGP (National Guard) A626A Perimeter Jamb Weatherstrip – Nylon Brush x Anodized Aluminum

$77.02
Usually Ships:  5-10 Business Days
  • Use on door frames to seal top and sides of door
  • Includes nylon brush insert
  • Seals against smoke, fire, air, and weather

Available Options:

Clear

Product Overview

National Guard Products (NGP) A626A Anodized Aluminum Silicone Perimeter Seal

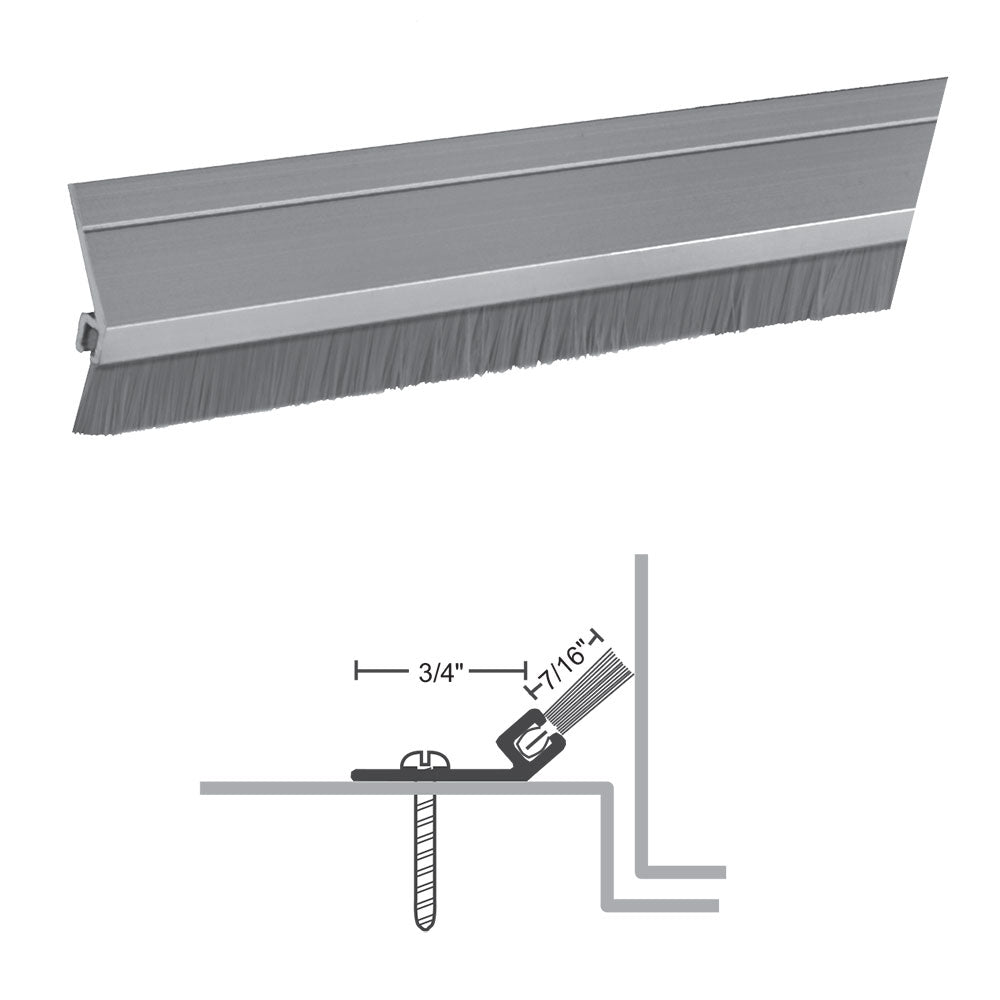

Designed to be applied to the “stop” perimeter of the door frame. The brush seal compresses against the door, to create a tight seal.

  • Aluminum alloy 6063, T5 temper
  • Synthetic polymer: Polyamide
  • Excellent abrasion resistance, flexibility and memory
  • Moisture resistant
  • Retains insecticides well
  • Temperature range -70°F to 425°F
  • BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
  • REACH and RoHS compliant
  • Not effective against water penetration
  • #6 x 3/4" stainless steel sheet metal screws furnished
  • Screw holes slotted for adjustment
  • Nylon brush is gray
  • Anodized aluminum
  • Available Sizes: 36″ x 84″ Set, *36" x 96" Set, 48" x 84" Set, *48" x 96" Set ,72″ x 84″ Set, *72" x 96", *96" x 96",  and *96″ Single Piece
  • Full-Length; Field-Cut to Size

*excessive length shipping fee applies

Standards

  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C
  • AIR INFILTRATION TESTED to ASTM E283
  • SMOKE & DRAFT CONTROL GASKETING
  • ANSI/BHMA CERTIFIED

made-in-usa

Brand

Finish

Anodized Aluminum

Size

36" x 84", 36" x 96", 48" x 84", 48" x 96", 72" x 84", 72" x 96", 96" x 96", 96"

Fire-Rating

Fire Rated – UL10C – Positive Pressure

Gasket Type

Screw-on

Insert/Seal Type

Nylon Brush

Buy American Act Compliance

Meets Buy American Act - Made in USA
